Code: 2600

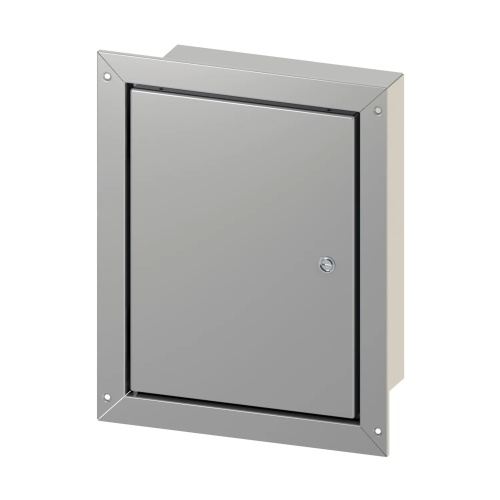

nVent Hoffman CFM20166 CONCEPT Flush Mount Steel Enclosure
nVent Hoffman CFM20166 White inside 20" x 16" x 6" Type 4,Type 12 CONCEPT FLUSH MOUNT Wall Mount Mild Steel Enclosure with door hinge and quarter turn latches (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$997.56
Sale Price
$831.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CFM20166 CONCEPT Flush Mount Steel Enclosure CONCEPT Steel FLUSH MOUNT Enclosure is ideal for machine control applications. Streamlined styling, flush quarter-turn latches, hinged door and an attractive, durable finish. Removable door with hidden hinges, simple easy-to-remove and install hinge pins with captivation clip, door opens 210 degree, stay in place gasket, and door bonding provision. Door provisions for data pocket, holes for mounting in back, studs for adding backplate for mounting equipment with gray finish and gray interior. Includes hardware kit with panel mounting nuts, grounding hardware, and sealing washers.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Width
16"
Enclosure Height
20"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Minimum-width body flange provides maximum door opening (210 degrees)
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Door opens 210 degrees
Corner-formed doors
Seams continuously welded and ground smooth
External formed body flange
Seamless foam-in-place gasket
Removable door with hidden hinges for clean, aesthetic appearance
Mounting holes in back of body for optional external wall-mount brackets
Panel mounting studs fit optional Concept panels and other accessories
Quarter-turn slotted latch(es)
Grounding stud on body, bonding provision on door
Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
Installation instructions provided
Flush-Mount models have a mounting frame that extends completely around the enclosure
Provisions on door for optional high-impact thermoplastic data pocket
Downloads
Hoffman CFM20166 2D DXF CAD.zipHoffman CFM20166 3D STEP CAD.zipHoffman CFM20166 CAD Drawing.zipHoffman CFM20166 Declaration of Compliance.pdfHoffman CFM20166 Dimension Drawing.gifHoffman CFM20166 EU Certification.pdfHoffman CFM20166 Instruction Manual.pdfHoffman CFM20166 Mounting Instructions.pdfHoffman CFM20166 Spec Sheet.pdfHoffman CFM20166 UL Certification.pdfHoffman CFM20166 User Manual.pdf
