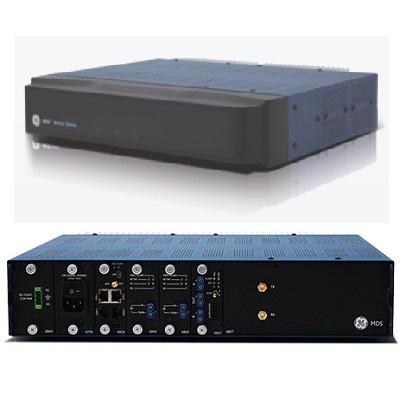

MDS SD Master Station 928-960 Narrow (Duplexer 9 MHz, RX 932.0-932.5 TX 998.0-998.5) Redundant 125 VDC Primary 125 VDC Secondary
Normally In Stock
Code: 25581
MDS SD Master Station MPRS9CRD9B1S2N44F1SNN licensed 928-960 Narrow MHz Redundant Protected (5-10 MHz SP, 330-512MHz, TX High Duplexer) 125 VDC Primary Power and 125 VDC Secondary Power with redundancy. Master Station with serial and ethernet data ports. Used with SD9 radios and 9710 radios. FCC/IC Regulatory approval.
Condition: New
Usually ships within 2 weeks$12152.16
Sale Price
$11047.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
MDS SD Master Station 928-960 Narrow Simplex Redundant Protected 125 VDC Primary Power and 125 VDC Secondary Power with redundancy. Serial Master Station with serial and ethernet data ports. MPRS9CRD9B1S2N44F1SNN is compatible with SD9 and 9710 radios with data rates up to 19.2 Kbps. Max range of 50 miles and sensitivity of -112. Temperature range of -22-140 degrees fahrenheit, power consumption of 5 A or 60 watts. Excellent performance in the face of interference or difficult signal paths. Network management software simplifies maintenance tasks, reduces network infrastructure management costs, and provides a non-intrusive means of maintenance and link monitoring. Redundancy options for protected 1+1 warm stanby configuration for reliable continuous use. Full duplex, half duplex and simplex modes.
Specifications
Radio Capability
Point To Multipoint
Radio Housing
Enclosed
Radio Encryption
None
Radio UL Approval
UL Approved
Radio Data Protocol
Serial RS232
Radio Data Protocol
Ethernet
Radio Temperature Range High
140F
Radio Carrier Power
5 Watt
Radio RF Connector
N Female
Radio Temperature Range Low
-22F
Radio Data Rate
19.2 Kbps
Radio Sensitivity
-112
Radio Serial Ports
2 Serial Ports
Radio Ethernet Ports
1 Ethernet Port
Radio Data Interface
RJ45
Radio Redundancy
Redundant 2 Radios
Radio Voltage
125 VDC
Radio Mounting
Standard Mount
Radio Battery Backup
No Battery Backup
Radio Frequency Range
928-960 Mhz(Narrow)
Radio Frequency Band
B Band 928-960 Narrow Mhz
2nd Radio Frequency Band
B Band 928-960 Narrow Mhz
2nd Radio Frequency Range
928-960 Narrow Mhz
Radio Type
900 Mhz Serial Licensed
Radio 2 Type
900 Mhz Serial Licensed
Radio Antenna Ports
1 Antenna Port
Manufacturer
MDS
2nd Radio Voltage
125 VDC
Line
SD9 Master Station
Component
Radio
Features
The MDS Master Stations, built upon our modular communications platform, are used with SD Series and x710 series remote radios.
The MDS Master Stations support full duplex communication in a protected 1+1 warm standby transceiver configuration to provide reliability for continuous use, high duty cycle applications associated with licensed narrowband Base Station and Repeater applications.
The MDS Master Station is offered in a 19 in/43.8 cm, 2 rack-unit high chassis containing an internal duplexer with options for connecting an external duplexer.
