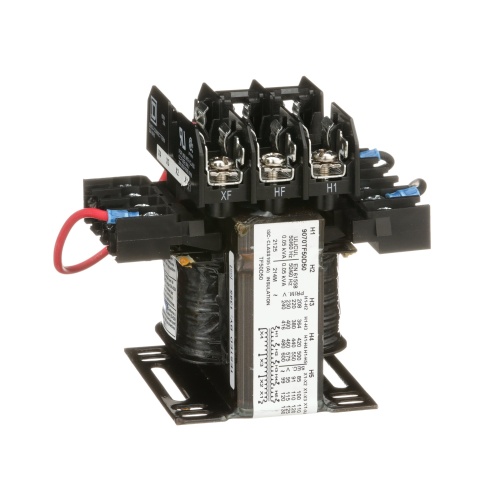

Square D 9070TF50D50 Voltage Transformer
Normally In Stock
Code: 24936
Square D 9070TF50D50 Class 9070 Type TF Transformer 50 VA Output (VoltAmp) with fuse blocks. 240/416/480/600 Volt Primary (Input) to 90/120/130 Volt Secondary (Output) OR 230/400/460/575 Volt Primary (Input) to 95/115/125 Volt Secondary (Output) OR 220/380/440/550 Volt Primary (I
Condition: New
Usually ships Same Day or Next Day$734.54
Sale Price
$612.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Square D 9070TF50D50 Class 9070 Type TF Transformer 50 VA Output (VoltAmp). 240/416/480/600 VAC to 99/120/130 VAC OR 230/400/460/575 VAC to 95/115/125 VAC OR 220/380/440/550 VAC to 90/110/120 VAC OR 208/360/416/520 VAC to 85/104/115. 4" x 3" x 3.09" (HxWxD). Includes 2 primary fuse blocks and 1 secondary fuse block mounted on top of transformer. Includes rejection-style clips to increase the AIC ratings for the fuses. Low impedance windings for excellent voltage regulation. Accomodates high inrush currents from relays, starters, solenoids, contactors etc.
Specifications
Transformer Voltage Phases
Single Phase
Transformer Fuse Blocks
With Fuse Blocks
Manufacturer
Schneider Electric
Component
Voltage Transformer
Transformer Primary Voltage In
400V
Transformer Primary Voltage In
600V
Transformer Primary Voltage In
230V
Transformer Secondary Voltage Out
120V
Transformer Primary Voltage In
480V
Transformer Primary Voltage In
575V
Transformer Primary Voltage In
416V
Transformer Primary Voltage In
240V
Transformer Secondary Voltage Out
115V
Transformer Secondary Voltage Out
95V
Transformer Secondary Voltage Out
99V
Transformer Secondary Voltage Out
130V
Transformer Secondary Voltage Out
125V
Transformer Secondary Voltage Out
85V
Transformer Secondary Voltage Out
104V
Transformer VA
50 VA
Features
Factory installed fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively.
This design frees up space normally used for separate fuse blocks.
UL E61239, Guide XPTQ2
cUL E61239
CSA LR37055, Guide 184-N-90
