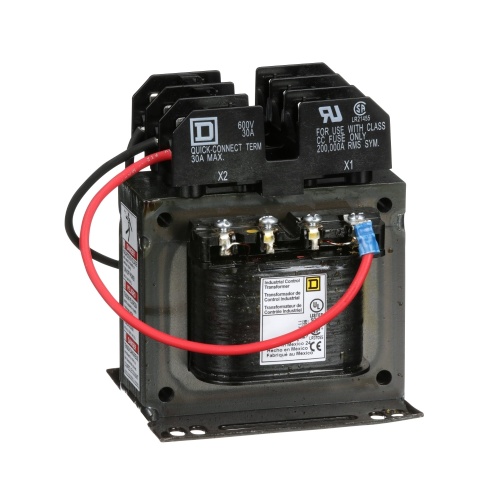

Square D 9070TF150D20 Voltage Transformer
Normally In Stock
Code: 24886
Square D 9070TF150D20 Class 9070 Type TF Transformer 150 VA Output (VoltAmp) with fuse blocks. 208/230/460 Volt Primary (Input) to 115 Volt Secondary (Output). .
Condition: New
Usually ships Same Day or Next Day$683.89
Sale Price
$569.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Square D 9070TF150D20 Class 9070 Type TF Transformer 150 VA Output (VoltAmp). 208/230/460 VAC to 115 VAC. 4.5" x 3.75" x 3.59" (HxWxD). Includes 2 primary fuse blocks and 1 secondary fuse block mounted on top of transformer. Includes rejection-style clips to increase the AIC ratings for the fuses. Low impedance windings for excellent voltage regulation. Accomodates high inrush currents from relays, starters, solenoids, contactors etc.
Specifications
Transformer Voltage Phases
Single Phase
Transformer Fuse Blocks
With Fuse Blocks
Manufacturer
Schneider Electric
Component
Voltage Transformer
Transformer Primary Voltage In
230V
Transformer Primary Voltage In
460V
Transformer Secondary Voltage Out
115V
Transformer Primary Voltage In
208V
Transformer VA
150 VA
Features
Factory installed fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively.
This design frees up space normally used for separate fuse blocks.
UL E61239, Guide XPTQ2
cUL E61239
CSA LR37055, Guide 184-N-90
