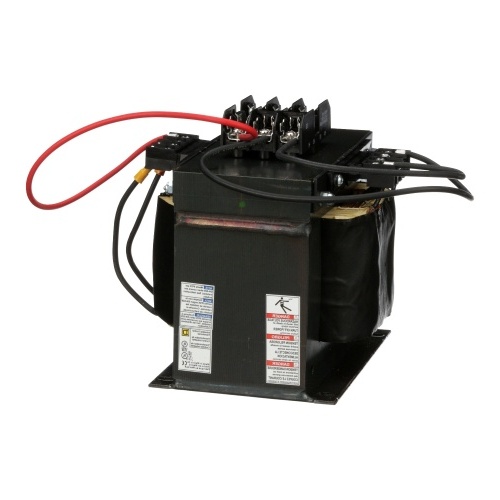

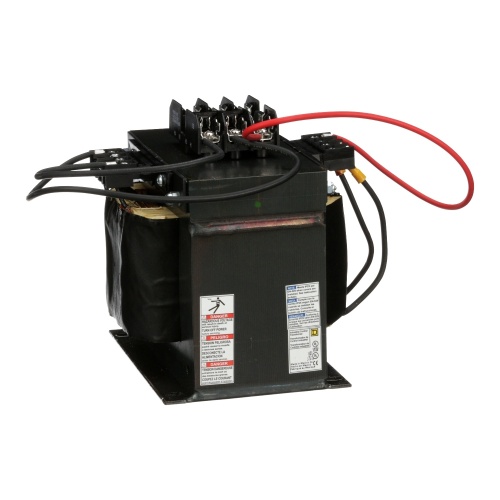

Square D 9070TF2000D1 Voltage Transformer
Normally In Stock
Code: 24702
Square D 9070TF2000D1 Class 9070 Type TF Transformer 2000 VA Output (VoltAmp) with fuse blocks. 240/480 Volt Primary (Input) to 120 Volt Secondary (Output) OR 230/460 Volt Primary (Input) to 115 Volt Secondary (Output) OR 220/440 Volt Primary (Input) to 110 Volt Secondary (Output
Condition: New
Usually ships Same Day or Next Day$2276.47
Sale Price
$1897.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Square D 9070TF2000D1 Class 9070 Type TF Transformer 2000 VA Output (VACAmp). 240/480 VAC to 120 VAC OR 230/460 VAC to 115 VAC OR 220/440 VAC to 110 VAC. 7.46" x 7.06" x 7.17" (HxWxD). Includes 2 primary fuse blocks and 1 secondary fuse block mounted on top of transformer. Includes rejection-style clips to increase the AIC ratings for the fuses. Low impedance windings for excellent VACage regulation. Accomodates high inrush currents from relays, starters, solenoids, contactors etc.
Specifications
Transformer Voltage Phases
Single Phase
Transformer Fuse Blocks
With Fuse Blocks
Manufacturer
Schneider Electric
Component
Voltage Transformer
Transformer Secondary Voltage Out
120V
Transformer Primary Voltage In
480V
Transformer Primary Voltage In
460V
Transformer Primary Voltage In
440V
Transformer Primary Voltage In
240V
Transformer Secondary Voltage Out
110V
Transformer Primary Voltage In
220V
Transformer Secondary Voltage Out
115V
Transformer Primary Voltage In
130V
Transformer kVA
2 Kva
Features
Factory installed fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively.
This design frees up space normally used for separate fuse blocks.
UL E61239, Guide XPTQ2
cUL E61239
CSA LR37055, Guide 184-N-90
