Code: 24046

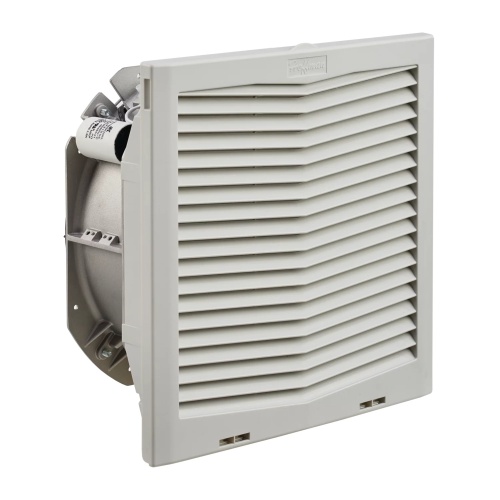

nVent Hoffman HF1324414 Filter Fan Package 13" 24VDC
nVent Hoffman HF1324414 Filter Fan Package HF13, 249 CFM with 1 Exhaust Grille or 333 CFM with 2 Exhaust Grilles (375 CFM Free Airflow). IP54 (Nema 3) Filter Fan 24v 13" Side-Mount Filter Fan. Includes fan, filter and grille with RAL 7035 Light Gray cover.
Condition: New
Usually ships Same Day or Next Day$1153.97
Sale Price
$961.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman HF1324414 Filter Fan Package HF13, 249 CFM with 1 Exhaust Grille or 333 CFM with 2 Exhaust Grilles (375 CFM Free Airflow). IP54 (Nema 3) Filter Fan 24v 13" Side-Mount Filter Fan. Includes fan, filter and grille with RAL 7035 Light Gray cover.
Specifications
Fan Environment
Indoor
Fan Mount
Side-Mount
Sub Component
Filter Fan Package
Air Flow Component Shape
Square
Air Flow Component Type
Grille
Air Flow Component Composition
Plastic
Air Flow Component Size
13"
Component
Fan & Filter & Louver
Air Flow Component Voltage
24 Volt
Manufacturer
Hoffman
Features
Standard rope gasket provides proper seal to the enclosure
Enclosure side wall mounting
Reverse airflow option on HF13 models available to push/pull air through higher static pressure
Similar cut-out sizes as other filter fan manufacturers
Opens with the flick of a finger for easy filter replacement
Click-Fit design quickly installs into enclosure wall, no tools or screws required
Terminal block connections
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)

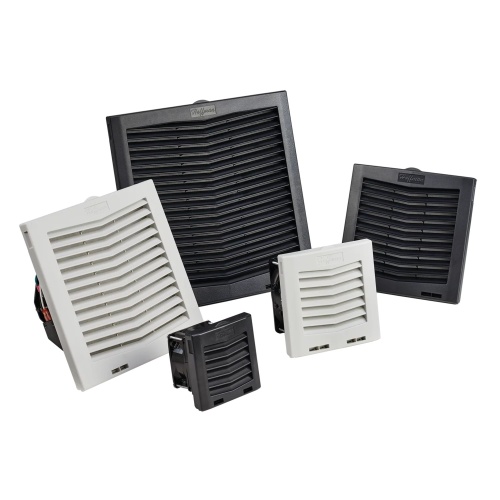

Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Hinged grille remains attached after opening
Optional thermostat available to save energy and extend service life
Service life hours from 40,000 to 100,000 hours
Operating temperature range of -4 F/-20 C to 149 F/65 C
