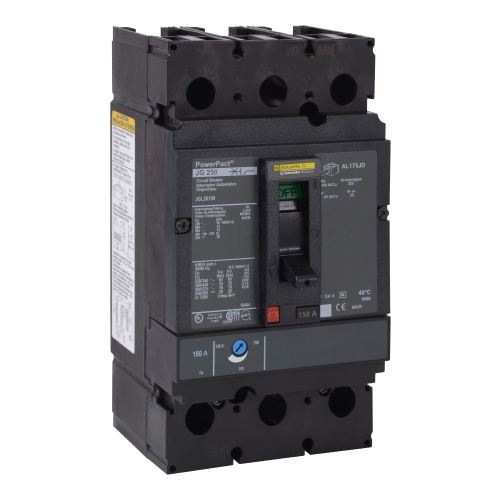

Schneider Electric JGL26150 Square D Breaker J Frame 150 Amp Two Pole
Normally In Stock
Code: 24030
Schneider Electric Square D JGL26150 J Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 150 Amp up to 600 VAC or 500 VDC, Two Pole, G Interrupt Rating.
Condition: New
CALL FOR LEAD TIME$6298.99
Sale Price
$5249.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Square D JGL26150 J Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 150 Amp up to 600 VAC or 500 VDC, Two Pole, G Interrupt Rating.
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
150 Amp
Interrupt Code (Molded Case Breaker)
G Interrupt Rating
Frame Type (Molded Case Breaker)
J Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Maximum Voltage (Molded Case Breaker)
500 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
35 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 600 Volt
Features
Available in 2-3 pole design, from 70-250A at up to 600 VAC and 250 VDC and in standard (80%) or 100% rating
Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA, L-100 kA, and R-200kA at 480 VAC and 20 kA at 250 VDC
Available with the industry's first LED Visi-Trip™ locator and with field-interchangeable trip units
PowerPacT H- (150A) and J-frame (250A) circuit breakers have common mounting holes, handle locations, and trim dimensions to allow design standardization
Common accessories across the range of PowerPacT Molded Case Circuit Breakers allow users to make late specification changes
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC Style Rotary Operating Handles
- NEMA 9421 Door Mounted Rotary Operating Mechanism
- NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated
Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields
Available in Unit mount (lug-lug, rear, bus bar, plugin and drawout) and I-line constructions. Molded case switch and motor circuit protector options are available
UL 489 Listed, CSA, NOM, IEC CCC, UKCA, and CE marked for global acceptance. RoHS and REACH compliant
Additional ratings:
- HACR, SWD, and HID
- UL 489 SC Listed 500 VDC Circuit Breakers
- UL Marine Listed/CSA Certified Circuit Breakers (UL 489 Supplement SA)
- UL Naval Listed/CSA Certified Circuit Breakers (UL 489 Supplement SB)
- American Bureau of Shipping (ABS)
