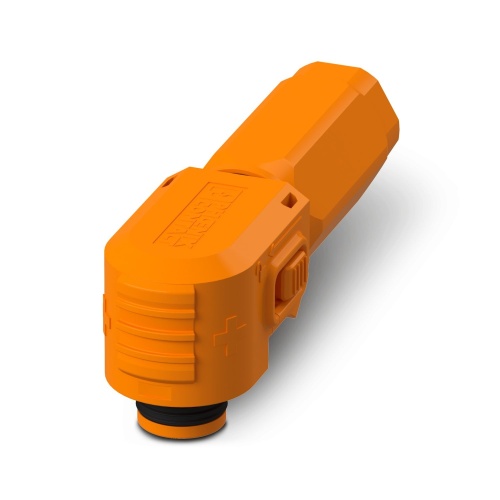

Phoenix Contact 1155594 Connector ES-BPC-C 50-70 OG
Normally In Stock
Code: 236251
Phoenix Contact 1155594 - Connector - 1 Position - Cu, Cu Alloy - 250 Amp - IP65 - Crimp Connection
Condition: New
Usually ships Same Day or Next Day $26.96
Sale Price
$22.47
MUST BUY IN PACKS OF 15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

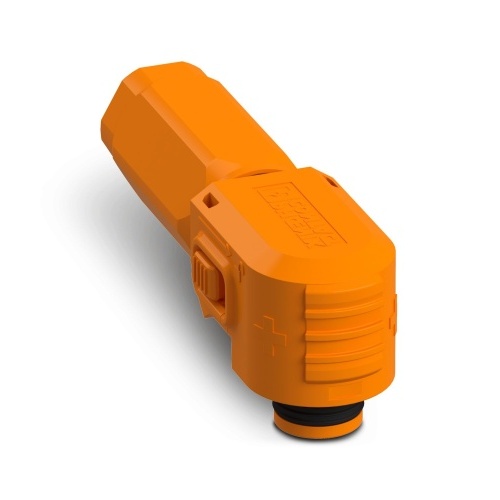

Phoenix Contact 1155594 The connector features an orange color with one position available and has a minimum conductor cross section of 50mm² to a maximum of 70mm². It is rated for 1500 volts and 250 amps. Connection is made via crimping, utilizing a socket contact connection type, and it accommodates cables with diameters ranging from 11.3mm to 17mm in diameter.
Specifications
Connector Amperage
250 Amp
Connector Material
Cu Alloy
Connector Material
Polyamide
Connector Material
Cu
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
1
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Safety lock
360° free rotation and flexible wiring
Foolproof mechanism installed
Touch-proof
Mismatching and short circuit proof
