Code: 2337

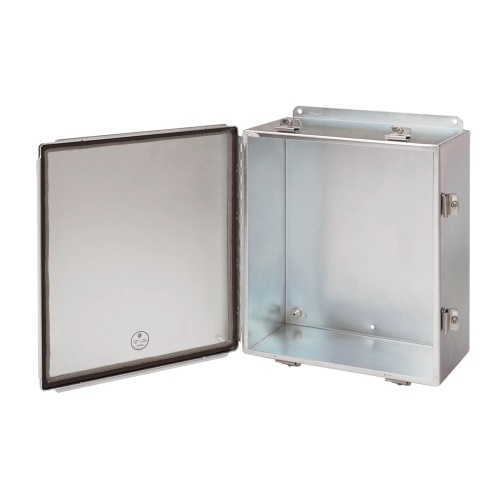

nVent Hoffman A1008CHEMC Steel Enclosure EMC Junction Box
nVent Hoffman A1008CHEMC 10" x 8" x 4" Type 12 Indoor Wall Mount Mild Steel Plated EMC Enclosure with continuous hinge and screw-down latches. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$788.48
Sale Price
$657.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A1008CHEMC Steel Enclosure EMC Junction Box Steel Indoor EMC Enclosure to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external RFI & EMI interference. continuous hinge door with stainless steel screw down clamps and door gasket. Plated finish provides conductive surface, bonding provisions on door, and ready to add back panel for mounting equipment. Shielding effective greater than 80 dB @ 1 GHz.
Specifications
Enclosure Depth
4"
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
Painted Steel
Enclosure Width
8"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
10"
Enclosure Latch Type
Screw
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Stainless steel cover clamps and screws
Bonding provision on door
Combination woven steel mesh and oil-resistant gasket
Weldnuts provided for mounting optional panels and terminal kits in size 6.00 x 4.00 in. (152 x 102mm) and larger
Continuous hinge
Seams continuously welded and ground smooth
Shielding effectiveness greater than 80 dB at 1 GHz
Downloads
Hoffman A1008CHEMC 2D DXF CAD.zipHoffman A1008CHEMC 3D STEP CAD.zipHoffman A1008CHEMC CAD Drawing.zipHoffman A1008CHEMC Declaration of Compliance.pdfHoffman A1008CHEMC Dimension Drawing.gifHoffman A1008CHEMC EMC Shielding Effectiveness Chart.gifHoffman A1008CHEMC EU Certification.pdfHoffman A1008CHEMC Instruction Manual.pdfHoffman A1008CHEMC Spec Sheet.pdfHoffman A1008CHEMC UL Certification.pdfHoffman A1008CHEMC User Manual.pdf
