Code: 2299

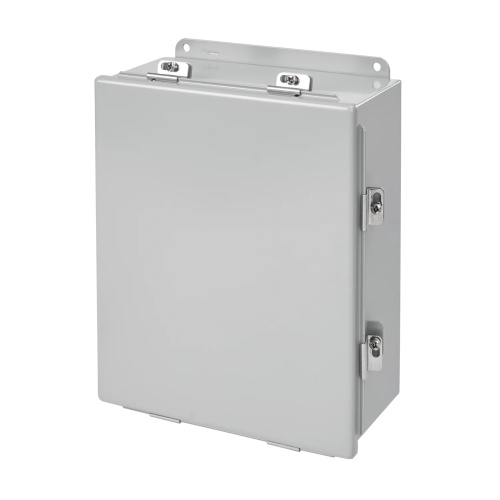

nVent Hoffman A1614CHNF Steel Enclosure Junction Box
nVent Hoffman A1614CHNF 16" x 14" x 6" Type 4 Outdoor-Indoor Wall Mount Mild Steel Enclosure with continuous hinge and screw-down clamps on three sides. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$512.94
Sale Price
$427.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A1614CHNF Steel Enclosure Junction Box Steel Junction Box Enclosure with continuous hinge and stainless steel clamps on three sides protects you equipment and provides security in indoor or outdoor applications. Stainless steel hinge pin, gasket, bonding provisions and welded on mounting brackets. Allows for backplate for mounting equipment.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
16"
Enclosure Width
14"
Enclosure Latch Type
Screw
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Manufacturer
Hoffman
Features
Oil-resistant gasket
Continuous hinge
Stainless steel hinge pin
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Stainless steel screw-down clamps on three sides of door
Seams continuously welded and ground smooth
Bonding provision on door
External wall-mounting brackets for easy installation
Downloads
Hoffman A1614CHNF 2D DXF CAD.zipHoffman A1614CHNF 3D STEP CAD.zipHoffman A1614CHNF CAD Drawing.zipHoffman A1614CHNF Declaration of Compliance.pdfHoffman A1614CHNF Dimension Drawing.gifHoffman A1614CHNF EU Certification.pdfHoffman A1614CHNF Instruction Manual.pdfHoffman A1614CHNF Spec Sheet.pdfHoffman A1614CHNF UL Certification.pdfHoffman A1614CHNF User Manual.pdf
