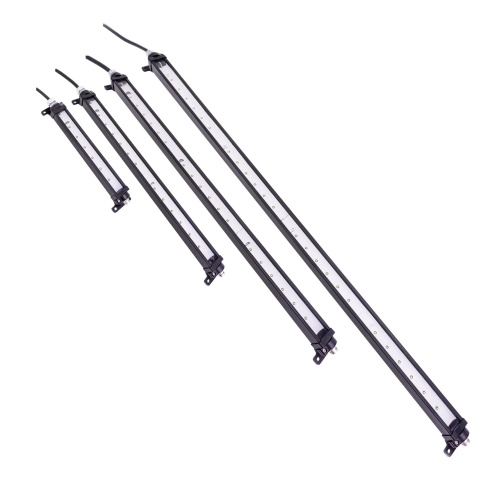

nVent Hoffman LEDHL24V24 Hazardous Locations Light Strip 24 in.
Normally In Stock
Code: 22971
nVent Hoffman LEDHL24V24 Hazardous Location LED Light 24 volt .66 amps 24" long with 1116 lumens output. Includes 6' cable with flying leads. NEMA 4x Rated for Class 1 Div 2 Groups A, B, C and D, T3. 25.06" x 1.69" x 2.69"
Condition: New
Usually ships Same Day or Next Day$1244.41
Sale Price
$1037.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman LEDHL24V24 Hazardous Location LED Light 24 volt .66 amps 24" long with 1116 lumens output. Includes 6' cable with flying leads. NEMA 4x Rated for Class 1 Div 2 Groups A, B, C and D, T3. 25.06" x 1.69" x 2.69"
Specifications
Component
LED Light
Sub Component
Hazardous Location LED Light
Mounting
Screw
Manufacturer
Hoffman
Hazardous Classification
Class 1 Div 2 Group A
Hazardous Classification
Class 1 Div 2 Group B
Hazardous Classification
Class 1 Div 2 Group C
Hazardous Classification
Class 1 Div 2 Group D
Max Volts
24 VDC
Features
Maximum lighting for control panels with 578 to 2,351 lumens and 5,000K color temperature
Easy installation with included mechanical assembly kit while maintaining enclosure rating up to UL Type 4X
Includes 3-ft connect cable with flying leads
Linear drive circuit with no flicker or high frequency electronic noise
Operating temperature of -40 F (-40 C) to 140 F (60 C)
Direct transfer of heat from PCB to the casing to maximize lifetime and reliability
Easy field angle adjustment with mounting bracket
Available in 12, 24, 36, and 48-inch lengths
Wide beam optics with 100 degree angle of illumination
