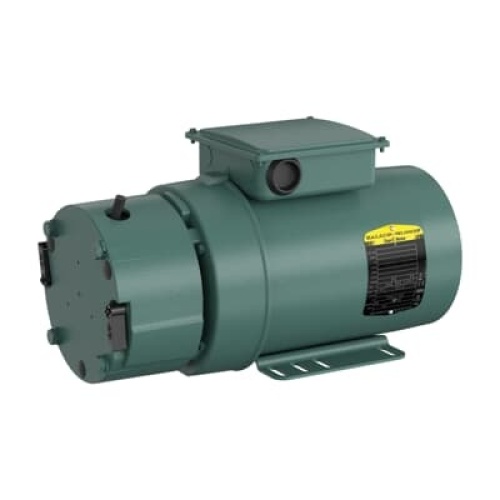

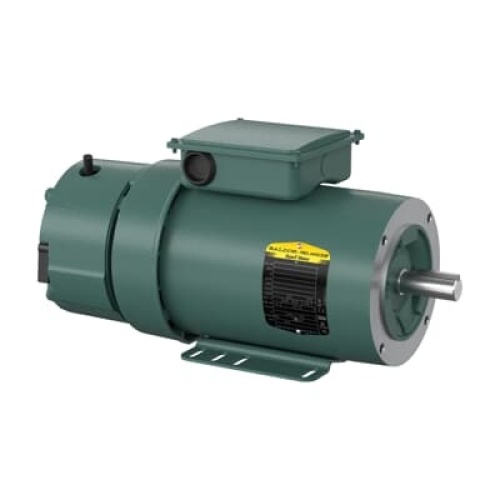

Baldor CEBM3558T-D 2HP, 1750RPM, 3PH, 60HZ, 145TYC, 3528M, Totally Enclosed Fan Cooled, F
Normally In Stock
Code: 221825
Baldor CEBM3558T-D 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 2 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$2709.14
Sale Price
$2257.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CEBM3558T-D 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 2 HP @ 60 HZ 1750 RPM,1800 RPM @ 60 HZ 5.900 A @ 208.0 V
5.800 A @ 230.0 V
2.900 A @ 460.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design L
Motor Frame Model
145TCY
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
2.900 Amp
Motor Amperage (Full Load)
5.800 Amp
Motor Amperage (Full Load)
5.900 Amp
Features
Fits easily into space-constrained conveyor systems, maximizing installation flexibility. Low profile F3 mounting available.
A fast-acting DC brake with an internal rectifier quickly stops the motor by converting AC power to DC to engage the brake without external components.
The manual release lever provides a safe way to disengage the brake manually for maintenance or emergency situations.
Baldor-Reliance three phase motors are suitable for inverter use per NEMA MG1 Part 31.4.4.2. Enhanced phase insulation protects the motor windings for reliable operation with VFD.
