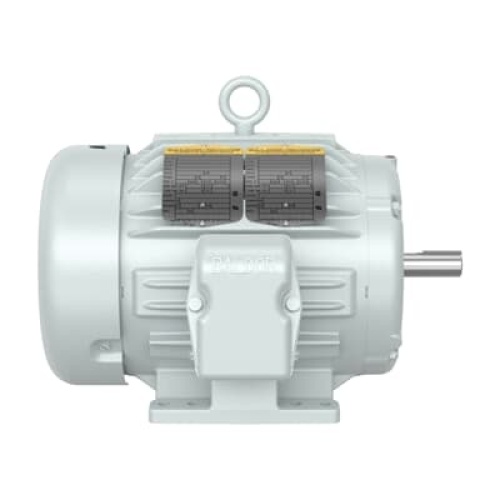

Baldor AEM3689-4 2HP, 1760RPM, 3PH, 60HZ, 184, 0626M, Totally Enclosed Fan Cooled, F1, N
Normally In Stock
Code: 221813
Baldor AEM3689-4 3 460.0 V @ 60 HZ 2 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$2501.54
Sale Price
$2084.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor AEM3689-4 3 460.0 V @ 60 HZ 2 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 2.700 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design K
Motor Frame Model
184
Motor Amperage (Full Load)
2.7 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Built with a heavy-duty cast iron frame and protective epoxy paint, this motor is designed for exceptional durability and resistance to harsh industrial conditions.
Double shielded ball bearings (regreaseable) for extended bearing life
The motor is rated to run at full load 1.0SF in environments up to 65°C, but can safely handle 1.15SF when operating in cooler 40°C conditions.
Shaft slingers on both drive end (DE) and opposite drive end (ODE) help protect the motor bearings by deflecting dirt, dust, and moisture away from the shaft.
Baldor-Reliance three phase motors are suitable for inverter use per NEMA MG1 Part 31.4.4.2
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
