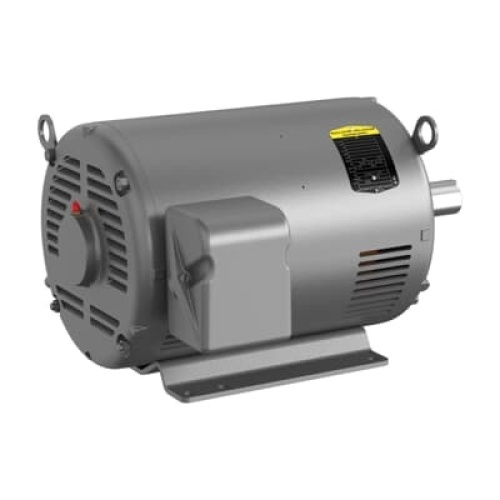

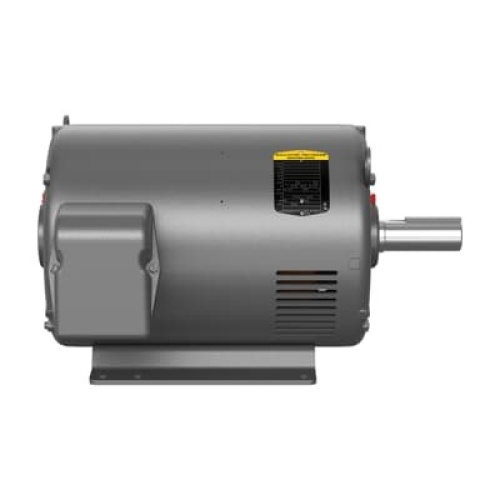

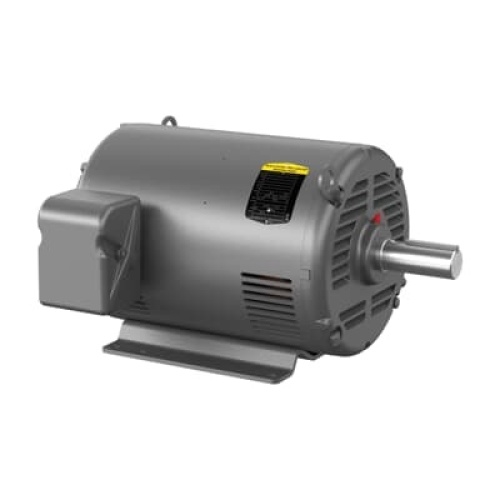

Baldor M1211T 15/3.8HP, 1770/880RPM, 3PH, 60HZ, 254T, 3936M
Normally In Stock
Code: 221716
Baldor M1211T 3 460.0 V @ 60 HZ 3.800 HP @ 60 HZ
15 HP @ 60 HZ Open Slotted Band
Condition: New
CALL FOR LEAD TIME$4731.50
Sale Price
$3942.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor M1211T 3 460.0 V @ 60 HZ 3.800 HP @ 60 HZ
15 HP @ 60 HZ 1770 RPM
880 RPM,1800 RPM @ 60 HZ 20 A @ 460.0 V 60.00 Hz Steel Open Slotted Band
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
15 HP
Motor Frame Model
254T
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
20 Amp
Motor NEMA Design
NEMA Design H
Motor Enclosure Type
Open Slotted Band
Motor Horsepower
3.8 HP
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
1/2 - 25 hp
NEMA frame 142T – 324T
TEFC and ODP, three phase
208-230, 230, and 460 volts
Heavy duty steel or cast iron frames
Dynamically balanced rotors
Dual speed ratings
High performance ball bearings
Dynamically balanced rotor
Heavy duty steel or cast iron frame
Constant and variable torque designs
One winding 1800/900 RPM
Two windings 1800/1200 RPM
