Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

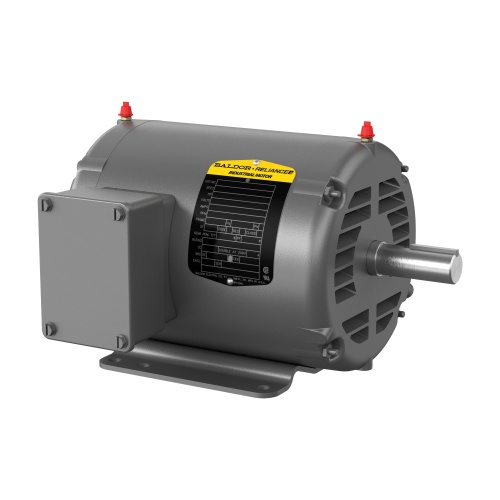

Baldor M1204T 1/.25HP, 1725/850RPM, 3PH, 60HZ, 143T, 3520M
Normally In Stock
Code: 221709
Baldor M1204T 3 460.0 V @ 60 HZ 1 HP @ 60 HZ
.250 HP @ 60 HZ OPEN
Condition: New
CALL FOR LEAD TIME$1340.21
Sale Price
$1116.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor M1204T 3 460.0 V @ 60 HZ 1 HP @ 60 HZ
.250 HP @ 60 HZ 1725 RPM
850 RPM,900 RPM @ 60 HZ 1.500 A @ 460.0 V 60.00 Hz Steel OPEN
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frame Model
143T
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Motor Amperage (Full Load)
1.5 Amp
Motor NEMA Design
NEMA Design F
Motor Horsepower
0.25 HP
Motor Enclosure Type
Open
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
1/2 - 25 hp
NEMA frame 142T – 324T
TEFC and ODP, three phase
208-230, 230, and 460 volts
Heavy duty steel or cast iron frames
Dynamically balanced rotors
Dual speed ratings
High performance ball bearings
Dynamically balanced rotor
Heavy duty steel or cast iron frame
Constant and variable torque designs
One winding 1800/900 RPM
Two windings 1800/1200 RPM
