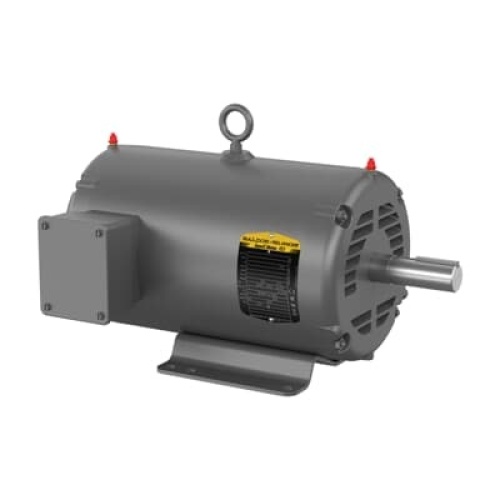

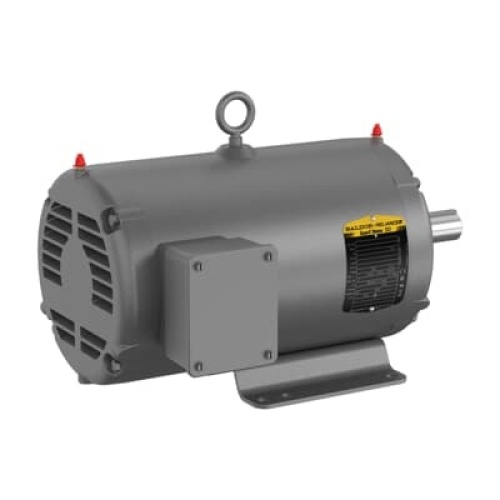

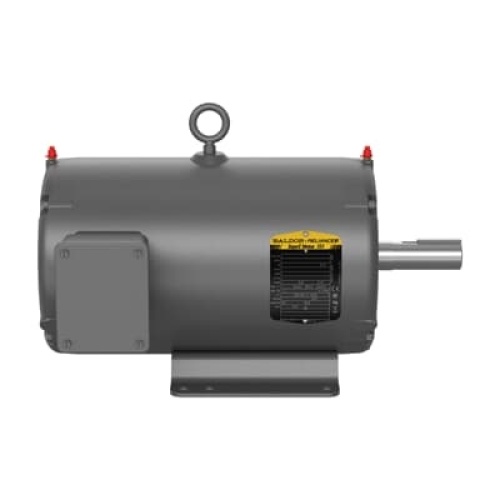

Baldor M1021T 1.5/.67HP, 1725/1140RPM, 3PH, 60HZ, 182T
Normally In Stock
Code: 221705
Baldor M1021T 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ 1.500 HP @ 60 HZ
.670 HP @ 60 HZ OPEN
Condition: New
CALL FOR LEAD TIME$1878.70
Sale Price
$1565.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor M1021T 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ 1.500 HP @ 60 HZ
.670 HP @ 60 HZ 1140 RPM
1725 RPM,1200 RPM @ 60 HZ 2.800 A @ 230.0 V
4.400 A @ 208.0 V 60.00 Hz Steel OPEN
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1.5 HP
Motor Frame Model
182T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor NEMA Design
NEMA Design H
Motor Voltage
208 Volt
Motor Enclosure Type
Open
Motor Horsepower
0.67 HP
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
2.800 Amp
Motor Amperage (Full Load)
4.400 Amp
Features
1/2 - 25 hp
NEMA frame 142T – 324T
TEFC and ODP, three phase
208-230, 230, and 460 volts
Heavy duty steel or cast iron frames
Dynamically balanced rotors
Dual speed ratings
High performance ball bearings
Dynamically balanced rotor
Heavy duty steel or cast iron frame
Constant and variable torque designs
One winding 1800/900 RPM
Two windings 1800/1200 RPM
