Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 221497

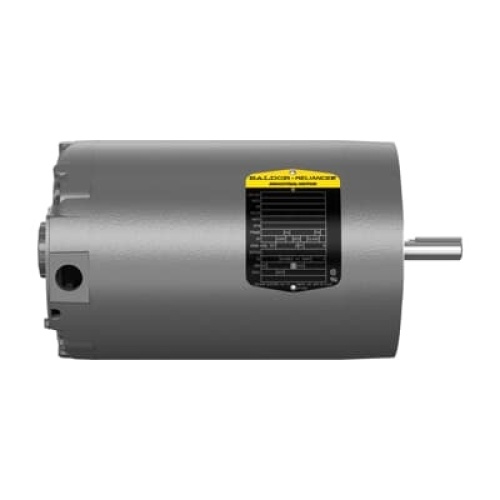

Baldor VAOM3560 .5 AIR OVERHP, 850RPM, 3PH, 60HZ, 56C, 3528M
Normally In Stock
Baldor VAOM3560 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ .500 HP @ 60 HZ Totally Enclosed Air Over
Condition: New
CALL FOR LEAD TIME$1026.94
Sale Price
$855.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VAOM3560 3 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ .500 HP @ 60 HZ 850 RPM,900 RPM @ 60 HZ 1.600 A @ 460.0 V
3.200 A @ 230.0 V
3.400 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Air Over
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor NEMA Design
NEMA Design M
Motor Voltage
208 Volt
Motor Enclosure Type
Totally Enclosed Air Over
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
3.200 Amp
Motor Amperage (Full Load)
1.600 Amp
Motor Amperage (Full Load)
3.400 Amp
Features
Class F insulation, 1.0 service factor, easy access terminal panel for connections in front endplate, lube-for-life double sealed ball bearings, locked drive end construction for minimum shaft movement.
Code: 221497
Baldor VAOM3560 .5 AIR OVERHP, 850RPM, 3PH, 60HZ, 56C, 3528M
$1026.94
Sale Price
$855.78
