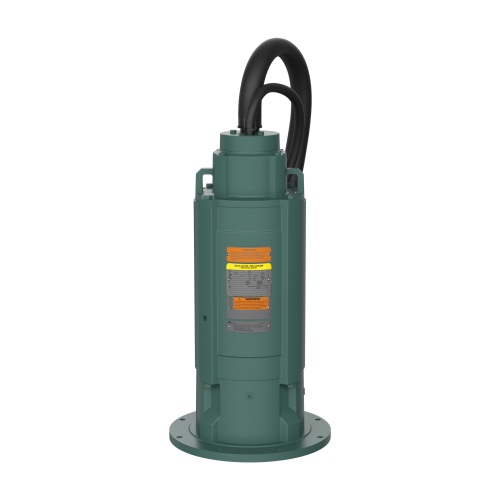

Baldor SUM21504 15HP, 1800RPM, 3PH, 60HZ, 210TY, Totally Enclosed Non-Vented, FOOTLE
Normally In Stock
Code: 221031
Baldor SUM21504 3 460 V @ 60 HZ
230 V @ 60 HZ 15 @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$10455.66
Sale Price
$8713.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor SUM21504 3 460 V @ 60 HZ
230 V @ 60 HZ 15 @ 60 HZ 20.1 A @ 460 V
40.2 A @ 230 V Iron Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
15 HP
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor NEMA Design
NEMA Design G
Motor Enclosure Type
Totally Enclosed Non-Vented
Motor Frame Model
210TY
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
20.1 Amp
Motor Amperage (Full Load)
40.2 Amp
Features
For continuous duty in water/sewage wet and dry pit applications. 25-ft cable for deep well operations (longer cable available)
UL Listed, CSA certified for CSA certified for Class 1 Division 1 Groups C & D with a T3C temperature code (T2A for inverter use)
Multiple sealing layers—including dual mechanical seals with an oil chamber, moisture probes, and secure epoxy-filled cable entries—ensure reliable operation even when fully submerged
Designed for durability, with a cast iron frame and end shield, 316 stainless steel hardware, a 416 stainless steel shaft, epoxy-sealed cable entry, and O-ring seals on all machined fits.
Inverter rated insulation system, Class 1 Division 1 Group D, T2A. Meets NEMA MG1, Part 31
Inpro/seals at drive end and opposite drive end
