Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 2203

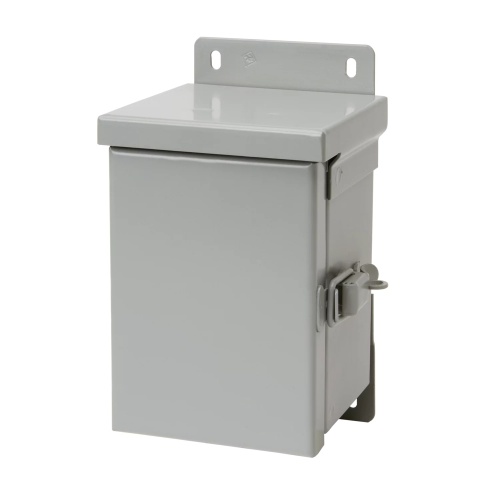

nVent Hoffman A12R106HCR Steel Enclosure Junction Box
nVent Hoffman A12R106HCR Enclosure Steel 12 x 10 x 6 inch (HxWxD) Type 3R Steel Enclosure with Plated steel hinge. Provision for padlocking. With Knockouts. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$240.13
Sale Price
$200.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A12R106HCR Enclosure Steel 12 x 10 x 6 inch (HxWxD) This nVent Hoffman enclosure, with it's drip-shield top, seamless sides and stainless steel pin on the plated steel hinge, is perfect for any location that needs protection from the elements, whether it be rain, sleet, snow, or dripping water. This enclosure also includes weldnuts for mounting panels and provisions for padlocking on zinc-plated draw-pull catch. Also included are knockouts on the bottom of this enclosure. With a Manufacturer like nVent Hoffman, this enclosure is sure to be sturdy and durable wherever it is needed.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Pull Catch
Enclosure Composition
Painted Steel
Enclosure Height
12"
Enclosure Width
10"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Manufacturer
Hoffman
Features
Knockouts on bottom of enclosure
Weldnuts provided for mounting optional panels
Provisions for padlocking on zinc-plated draw-pull catch
No gasketing
Plated steel hinge has stainless steel pin
Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
Downloads
Hoffman A12R106HCR 2D DXF CAD.zipHoffman A12R106HCR 3D STEP CAD.zipHoffman A12R106HCR CAD Drawing.zipHoffman A12R106HCR CSA Certification.pdfHoffman A12R106HCR Declaration of Compliance.pdfHoffman A12R106HCR Dimension Drawing.gifHoffman A12R106HCR EU Certification.pdfHoffman A12R106HCR Instruction Manual.pdfHoffman A12R106HCR Spec Sheet.pdfHoffman A12R106HCR UL Certification.pdfHoffman A12R106HCR User Manual.pdf
