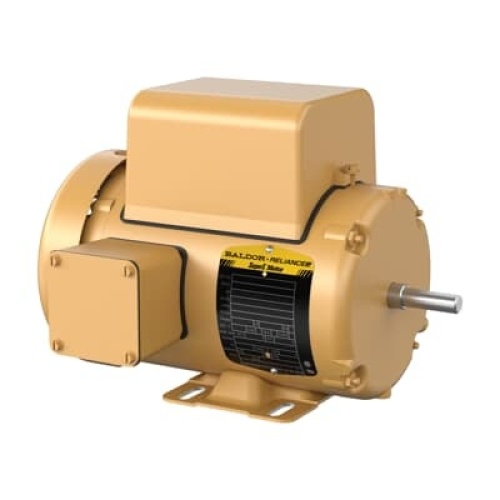

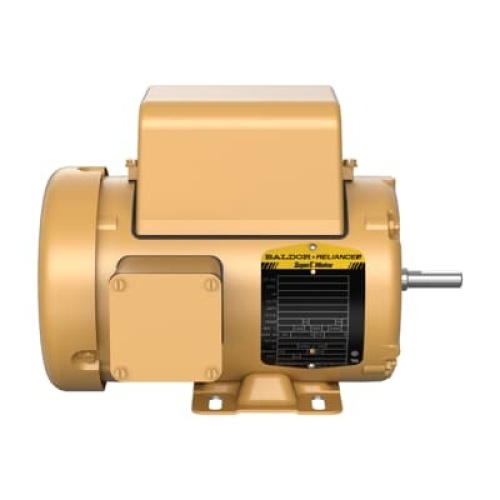

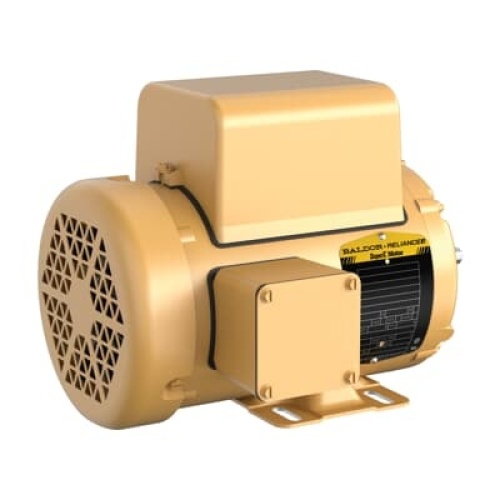

Baldor EL3405 .33HP, 3450RPM, 1PH, 60HZ, 48, 3420LC, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 218949
Baldor EL3405 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ .330 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$860.92
Sale Price
$717.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor EL3405 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ .330 HP @ 60 HZ 3450 RPM,3600 RPM @ 60 HZ 3.200 A @ 115.0 V
1.700 A @ 208.0 V
1.600 A @ 230.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
3600 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Horsepower
0.33 HP
Motor Amperage (Full Load)
1.6 Amp
Motor Amperage (Full Load)
1.7 Amp
Motor Amperage (Full Load)
3.2 Amp
Motor Voltage
208 Volt
Motor Frame Model
48
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
High grade materials make up a strong insulation system with Class F insulation and Class B temperature rise for operation in higher ambient temperature, overload conditions, and voltage tolerances.
Offer a wide variety of enclosure construction from industrial steel band open designs used in relatively clean environments
to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
All 3 phase motors are inverter duty per NEMA MG1 Part 31
General Purpose motors are versatile to perform reliably in a variety of operations where highly custom and hazardous location certifications are not needed.
