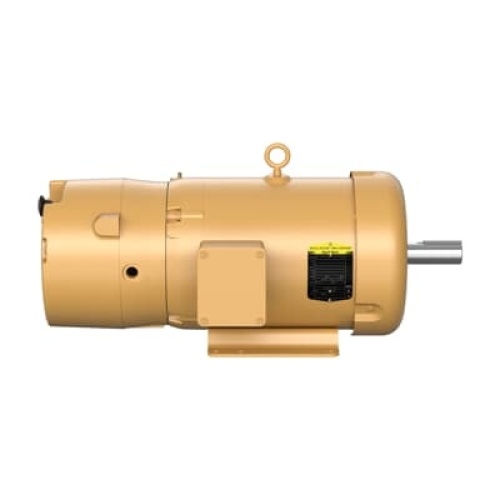

Baldor EBM3730TY 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3736M, Totally Enclosed Fan Cooled, F
Normally In Stock
Code: 218160
Baldor EBM3730TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$5099.45
Sale Price
$4249.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor EBM3730TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ 1770 RPM,1800 RPM @ 60 HZ 18.800 A @ 230.0 V
21 A @ 208.0 V
9.400 A @ 460.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
213T
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design J
Motor Amperage (Full Load)
21 Amp
Motor Amperage (Full Load)
9.4 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
18.8 Amp
Features
Baldor-Reliance® brake motors meet or exceed NEMA Premium® efficiency standards and are available in single phase and three phase designs utilizing footed or footless mounting provisions.
These brake motors have their spring-set brakes mounted opposite the drive end, allowing a NEMA-standard BA dimension
Brake coils are connected inside the conduit box for easy access for separate connection when used with a variable speed drive.
