Code: 218153

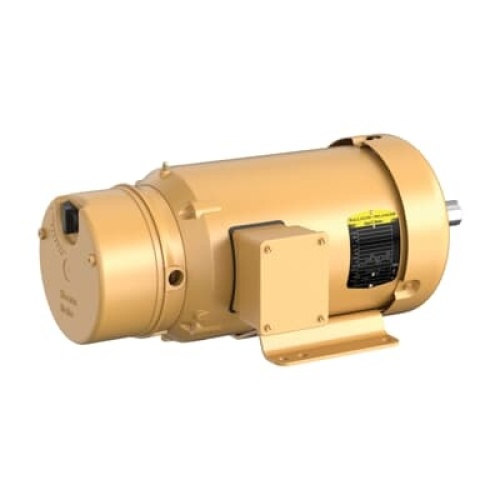

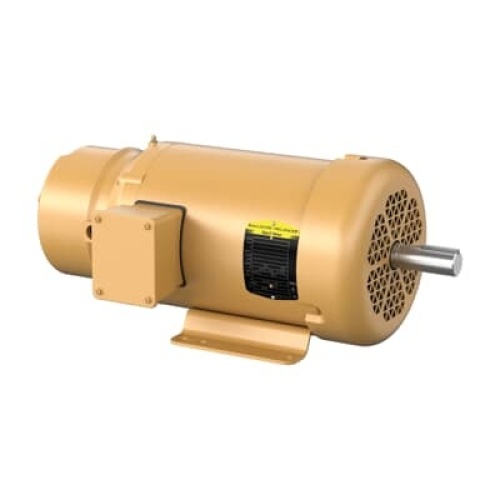

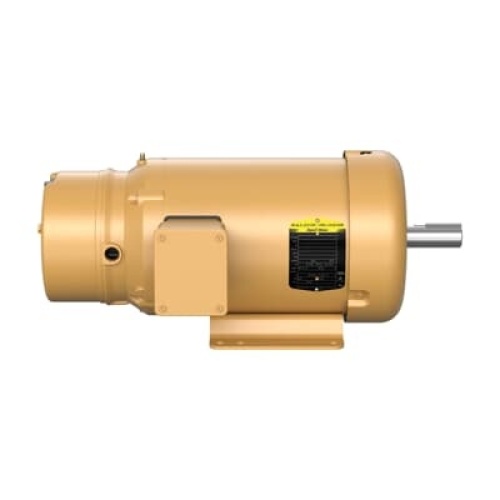

Baldor EBM3614TY 2HP, 1175RPM, 3PH, 60HZ, 184T, 3644M, Totally Enclosed Fan Cooled, F1
Normally In Stock
Baldor EBM3614TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 2 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$3086.36
Sale Price
$2571.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor EBM3614TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 2 HP @ 60 HZ 1175 RPM,1200 RPM @ 60 HZ 3.500 A @ 460.0 V
7 A @ 208.0 V
7 A @ 230.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frame Model
184T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Amperage (Full Load)
7 Amp
Motor Amperage (Full Load)
3.5 Amp
Motor NEMA Design
NEMA Design M
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Baldor-Reliance® brake motors meet or exceed NEMA Premium® efficiency standards and are available in single phase and three phase designs utilizing footed or footless mounting provisions.
These brake motors have their spring-set brakes mounted opposite the drive end, allowing a NEMA-standard BA dimension
Brake coils are connected inside the conduit box for easy access for separate connection when used with a variable speed drive.
