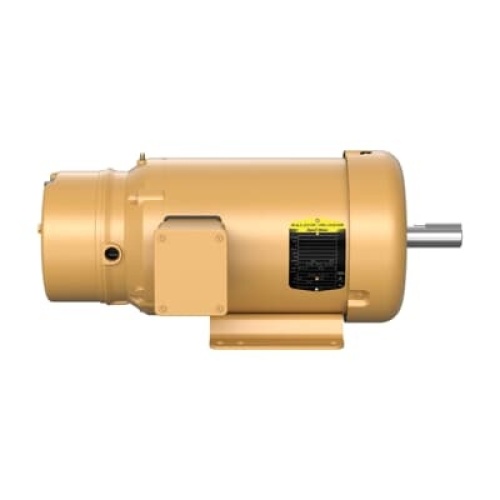

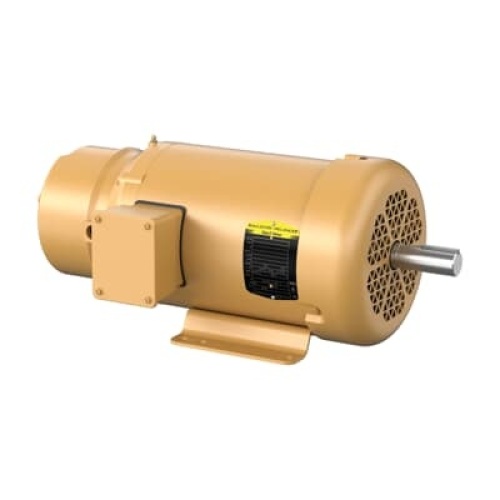

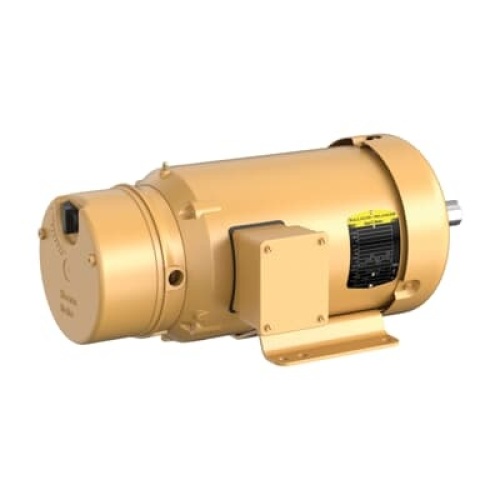

Baldor EBM3611TY 3HP, 1760RPM, 3PH, 60HZ, 182T, 3632M, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 218152
Baldor EBM3611TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 3 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$2855.59
Sale Price
$2379.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor EBM3611TY 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 3 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 4.200 A @ 460.0 V
8.400 A @ 230.0 V
9 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frame Model
182T
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
4.2 Amp
Motor Amperage (Full Load)
8.4 Amp
Motor Amperage (Full Load)
9 Amp
Motor NEMA Design
NEMA Design K
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Baldor-Reliance® brake motors meet or exceed NEMA Premium® efficiency standards and are available in single phase and three phase designs utilizing footed or footless mounting provisions.
These brake motors have their spring-set brakes mounted opposite the drive end, allowing a NEMA-standard BA dimension
Brake coils are connected inside the conduit box for easy access for separate connection when used with a variable speed drive.
