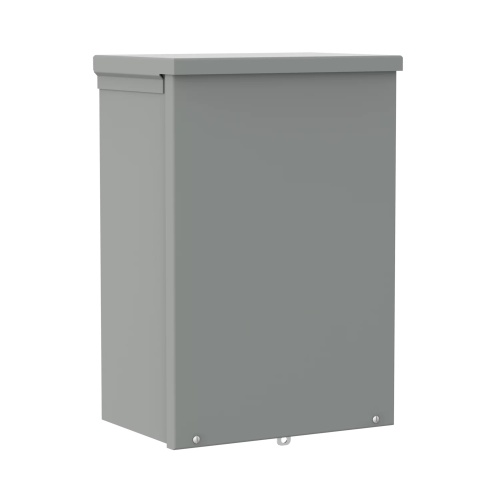

nVent Hoffman A12R128 Commercial Enclosure Screw-Cover Type 3R
Normally In Stock
Code: 2181
nVent Hoffman A12R128 12" x 12" x 8" Steel Enclosure with knockouts. Type 3R outdoor-indoor wall Mount Painted Steel with Screw Lift-Off cover. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$175.88
Sale Price
$146.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A12R128 Commercial Enclosure Screw-Cover Type 3R Steel Junction Box Enclosure with knockous Type 3R used in outdoor applications as a wiring junction box. Slip on removable cover with screws at bottom edge, drip shield top, padlocking provisions, no gasket, gray powder coat finish inside and out.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure knockouts
Includes Knockouts
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Height
12"
Enclosure Width
12"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
Screw-Cover Enclosure
Manufacturer
Hoffman
Features
Knockouts in bottom of 16 and 14 gauge enclosures
Handles on larger sizes (see table)
Embossed mounting holes on back of enclosure
Provision for padlocking
Slip-on removable cover fastened with plated steel screws along bottom edge
Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
No gasketing
Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Enclosures are finished with paint over plated surfaces
Downloads
Hoffman A12R128 2D DXF CAD.zipHoffman A12R128 3D STEP CAD.zipHoffman A12R128 CAD Drawing.zipHoffman A12R128 Declaration of Compliance.pdfHoffman A12R128 Dimension Drawing.gifHoffman A12R128 EU Certification.pdfHoffman A12R128 Spec Sheet.pdfHoffman A12R128 UL Certification.pdfHoffman A12R128 User Manual.pdf
