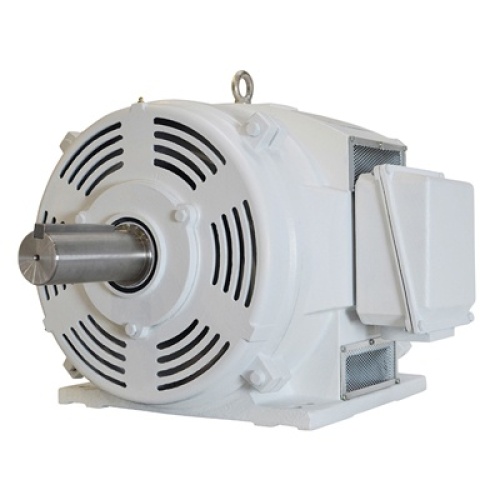

NAE OWP405T-75-6-ODP Electric Motor Oil Well Pump, 230 Volt, 460 Volt, 796 Volt, 3 Phase, 75 HP, 183 Amp, 91.5 Amp, 52.9 Amp
Normally In Stock
Code: 217483
NAE OWP405T-75-6-ODP Electric Motor 75 HP, 1200 RPM, 405T Frame, 460/796V, 3PH, NEMA Design D, 60HZ, 1.15 S.F., ODP, Oil Well Pump Motor, Cast Iron, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$6721.56
Sale Price
$5601.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE OWP405T-75-6-ODP Electric Motor 75 HP, 1200 RPM, 405T Frame, 460/796V, 3PH, NEMA Design D, 60HZ, 1.15 S.F., ODP, Oil Well Pump Motor, Cast Iron, Inverter Duty
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
75 HP
Motor Frame Model
405T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Manufacturer
North American Electric Motors
Motor Frame Construction
Cast Iron
Motor Voltage
796 Volt
Motor NEMA Design
NEMA Design D
Motor Amperage (Full Load)
183 Amp
Motor Amperage (Full Load)
91.5 Amp
Motor Amperage (Full Load)
52.9 Amp
Motor Enclosure Type
Open Drip-Proof
Features
Service factor: 1.15 @ 60 Hz
NEMA Design D Performance
High torque/high slip (5-8%)
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
IP23 protection
Thermistors in the windings
Condensation drains with plugs
Cast iron frame construction
Regreasable open bearings
Mechanical oil seal on both ends
2-year warranty (extended warranty available)
