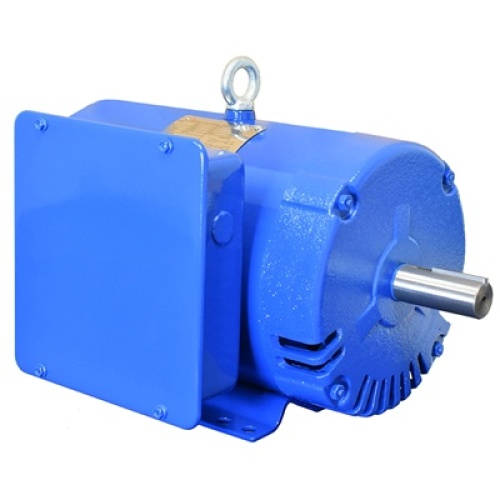

NAE D184T5S4C Electric Motor Compressor Duty, 208-230 Volt, 1 Phase, 5 HP, 22-20 Amp

NAE D184T5S4C Compressor Duty Electric Motor used for Pumps; Fans; Conveyors; Blowers; Air compressors; Refrigeration equipment; Industrial equipment; Milling machines; Tools; Farm equipment; Aeration equipment; Other general purpose applications where contaminants are minimal> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torque; Dual-drilled feet for mounting flexibility; Capacitor start/ capacitor run design. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and cast iron endbells; IP22 protection. Sealed bearings; 2-year warranty

Specifications
Motor Insulation Class	Class F Insulation
Motor Horsepower	5 HP
Motor Frame Model	184T
Motor Frequency	60 Hz
Motor RPM's	1800 RPM
Motor Voltage	208-230 Volt
Motor Voltage Phases	1 Phase
Motor NEMA Design	NEMA Design L
Motor Frame Construction	Rolled Steel
Manufacturer	North American Electric Motors
Motor Enclosure Type	Open Drip-Proof
Motor Amperage (Full Load)	22 - 20 Amp
