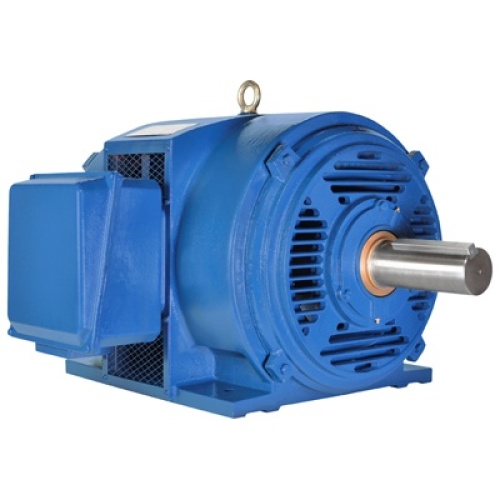

NAE PE326T-50-4-ODP Electric Motor General Purpose Heavy Duty Cast Iron, 208-230 Volt, 460 Volt, 3 Phase, 50 HP, 130 - 118 Amp, 59 Amp
Normally In Stock
Code: 216955
NAE PE326T-50-4-ODP Electric Motor 50 HP, 1800 RPM, 326T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Gen Purp, Cast Iron, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$3112.60
Sale Price
$2593.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE326T-50-4-ODP General Purpose Heavy Duty Cast Iron Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.25 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provisions. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Heavy duty cast iron housing or rolled steel with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware; IP23 protection; Condensation drain with plugs. Regreasable open bearings; 3-year warranty (extended warranty available)
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
326T
Motor Horsepower
50 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
130 - 118 Amp
Motor Amperage (Full Load)
59 Amp
Motor Enclosure Type
Open Drip-Proof
Features
Service factor: 1.25 @ 60 Hz
1.0 @ 50 Hz
Suitable for 575V @ 1.0
NEMA Design B Performance/ High starting torgue
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Heavy duty cast iron housing or rolled steel with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware
IP23 protection
Condensation drain with plugs
Regreasable open bearings
3-year warranty (extended warranty available)
