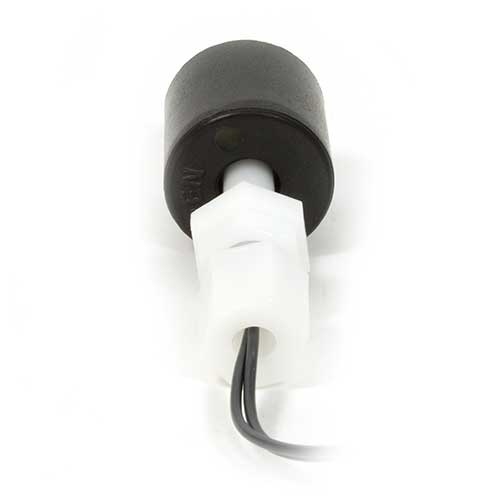

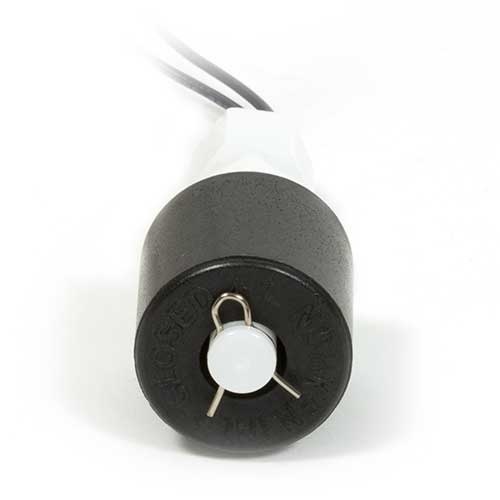

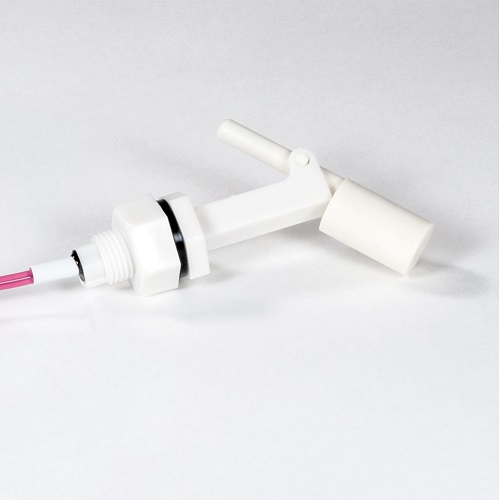

APG LFP-HE-P1 Miniature Liquid Level Sensor Float Switch
Normally In Stock
Code: 21269
APG LFP-HE-P1 Miniature Liquid Level Sensor Float Switch with 1 switch (SPDT) Normally Open or Normally Closed for Water. Supply voltage up to 300 VAC/VDC with 22 AWG wire 11.8" long. Horizontal Mount PF1/4 thread. Normally Open or Normally Closed Switch with Polypropylene Stem, Polypropylene Float, and Polypropylene Retainer for general purpose use. Max liquid temperature is 175 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$43.64
Sale Price
$36.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG LFP-HE-P1 Miniature Liquid Level Sensor Float Switch with 1 switch (SPDT) Normally Open or Normally Closed for Water. Supply voltage up to 300 VAC/VDC with 22 AWG wire 11.8" long. Horizontal Mount PF1/4 thread. Normally Open or Normally Closed Switch with Polypropylene Stem, Polypropylene Float, and Polypropylene Retainer for general purpose use. Max liquid temperature is 175 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Span
16'
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Composition
Polypropylene
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Indication
Low Level-Alarm
(Instrument-Sensor) Type
Miniature
(Instrument-Sensor) Application
Most Liquids
(Instrument-Sensor) Temperature Range
175 F
(Instrument-Sensor) Mounting
Horizontal Mount PF1-4
Features
Compact size
Low cost
Reliability/long switch life
Shock resistive construction
Can be used in a wide range of liquids
