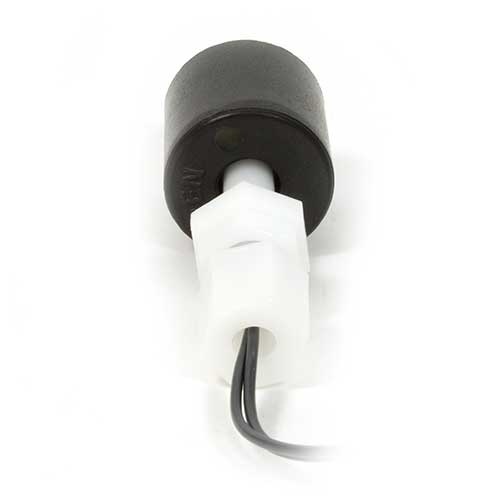

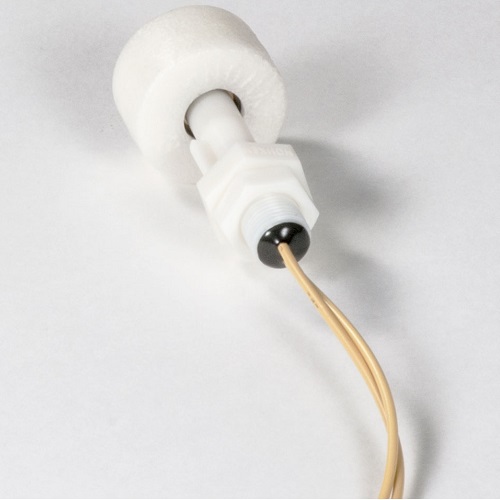

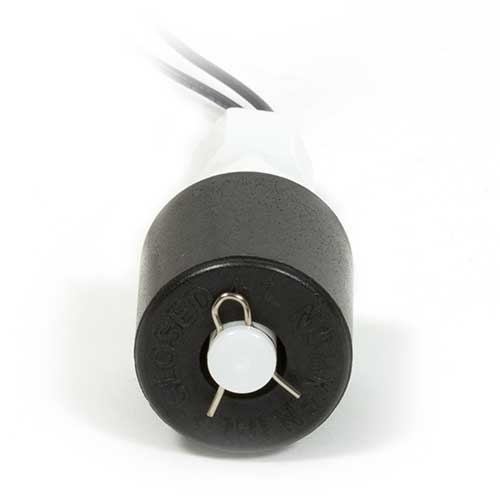

APG LFE-12P-0B Miniature Liquid Level Sensor Float Switch
Code: 21265
APG LFE-12P-0B Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Open for Water. Supply voltage up to 100 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Open Switch with Polypropylene Stem, Polypropylene Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
APG LFE-12P-0B Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Open for Water. Supply voltage up to 100 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Open Switch with Polypropylene Stem, Polypropylene Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Span
16'
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Type
Miniature
(Instrument-Sensor) Temperature Range
194 F
(Instrument-Sensor) Supply Voltage
Up To 100 VAC
(Instrument-Sensor) Mounting
Vertical Mount G1-8
