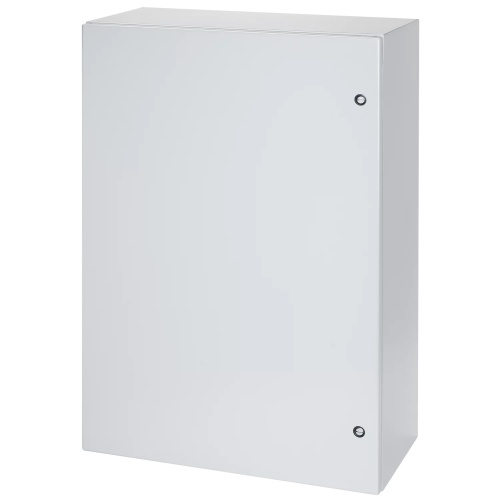

nVent Hoffman CSD36308LG CONCEPT Steel Enclosure Lt Gray
Normally In Stock
Code: 20285
nVent Hoffman CSD36308LG Light Gray inside 36" x 30" x 8" Type 4,Type 12 CONCEPT Wall Mount Mild Steel Enclosure with door hinge and quarter turn latches (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1167.41
Sale Price
$972.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD36308LG CONCEPT Steel Enclosure Lt Gray CONCEPT Steel Enclosure is ideal for machine control applications. Streamlined styling, flush quarter-turn latches, hinged door and an attractive, durable finish. Removable door with hidden hinges, simple easy-to-remove and install hinge pins with captivation clip, door opens 210 degree, stay in place gasket, and door bonding provision. Door provisions for data pocket, holes for mounting in back, studs for adding backplate for mounting equipment with gray finish and gray interior. Includes hardware kit with panel mounting nuts, grounding hardware, and sealing washers.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Width
30"
Enclosure Height
36"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Minimum-width body flange provides maximum door opening (210 degrees)
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Door opens 210 degrees
Corner-formed doors
Seams continuously welded and ground smooth
External formed body flange
Seamless foam-in-place gasket
Removable door with hidden hinges for clean, aesthetic appearance
Mounting holes in back of body for optional external wall-mount brackets
Panel mounting studs fit optional Concept panels and other accessories
Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Quarter-turn slotted latch(es)
Door alignment device on doors wider than 30 inch
Grounding stud on body, bonding provision on door
Provisions on door for optional high-impact thermoplastic data pocket
Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
Installation instructions provided
Four hinges on 60-inch high enclosures
