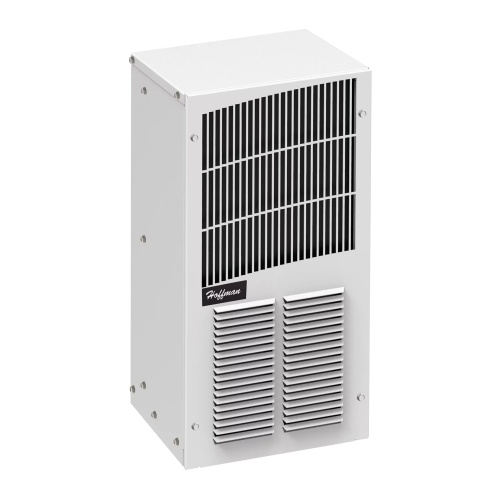

nVent Hoffman T200216G150 T-Series AC 115V 2000 BTU Outdoor
Normally In Stock
Code: 19508
nVent Hoffman T200216G150 Air Conditioner 115v 2,000 BTU AC Type 4 Outdoor with Heat Package, 7 Amp, (20"H x 10"W x 9.9"DD) 586 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Condition: New
Usually ships Same Day or Next Day$6779.22
Sale Price
$5649.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman T200216G150 Air Conditioner 115v 2,000 BTU AC Type 4 Outdoor with Heat Package, 7 Amp, (20"H x 10"W x 9.9"DD) 586 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Specifications
AC Width
11"
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Heat Package
Includes Heat Package
AC Voltage
115 VAC
AC Max BTU Rating
2000 BTU
AC Watts
586
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Air Conditioner
Line
T-Series
AC Height
21"
AC Depth
10"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
7 Amp
Manufacturer
Hoffman
Features
Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
UL Listed to save customers time and money with agency approvals (some models UL recognized)
Reliable mechanical thermostat on enclosure side of the unit
Models for 115, 230 and 460 VAC power input
Compact footprint to minimize real estate and maximize capacity
Dual condenser-side air movers for performance redundancy
Every unit functionally tested before shipping
Easy-mount flanges for simple installation
Exterior and fully recessed mounting options on many models
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
Mounting hardware, gaskets and user manual furnished with the unit
Item T150116G120 is only for indoor purpose
Downloads
Hoffman T200216G150 CAD Drawing.zipHoffman T200216G150 Declaration of Compliance.pdfHoffman T200216G150 EAC Certification.pdfHoffman T200216G150 EU Certification.pdfHoffman T200216G150 Instruction Manual.pdfHoffman T200216G150 Spec Sheet.pdfHoffman T200216G150 UL Certification.pdfHoffman T200216G150 User Manual.pdf
