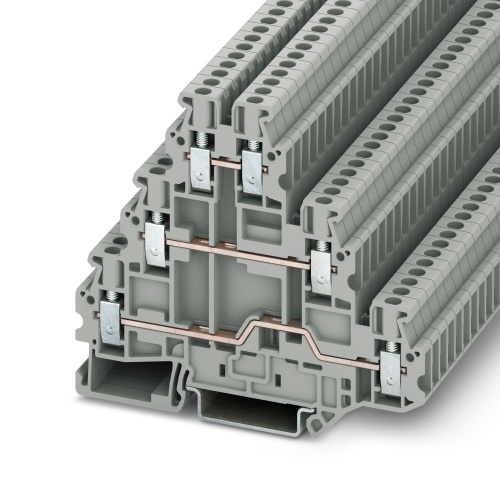

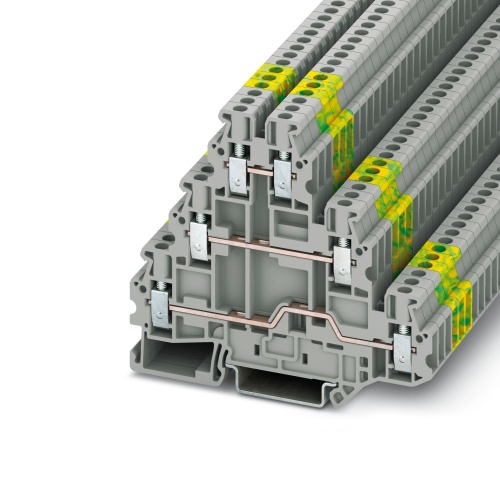

Phoenix Contact 3214259 Multi-level terminal block UT 2,5-3L
Normally In Stock
Code: 18031
UT 2,5-3L Phoenix Contact 3214259 Phoenix Contact UT 2.5-3L. Three Level Terminal Block 5.2mm Gray through screw connection, up to 500V, 25A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$5.83
Sale Price
$4.86
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214259 A multi-level terminal block features a nominal voltage of 500 V and a nominal current of 19 A with screw connections to the rated cross section of 2.5 mm2, offering flexibility for varying cross-sectional sizes between 0.14 mm2 to 4 mm2, mounted using either NS 35/7,5 or NS 35/15, and characterized by its gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
19 Amp
Sub Component
Multi-Level Terminal Block
Features
Tested for railway applications
For a clear overview, each terminal point supports large-surface labeling
A very high wiring density is achieved with the compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly
Downloads
Phoenix 3214259 Application Note International.pdfPhoenix 3214259 CAD data International.dxfPhoenix 3214259 CAD data International.pdfPhoenix 3214259 CAD data International.stpPhoenix 3214259 CAD Drawing.zipPhoenix 3214259 Manufacturers declaration English.pdfPhoenix 3214259 Manufacturers declaration International-2.pdfPhoenix 3214259 Manufacturers declaration International.pdfPhoenix 3214259 Safety note English.pdfPhoenix 3214259 Spec Sheet.pdfPhoenix 3214259 Tender Text English.zip
