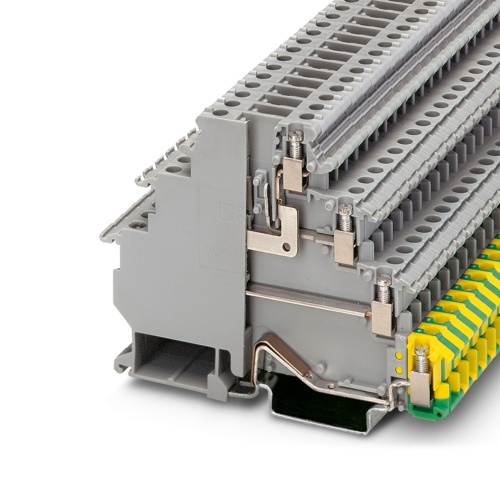

Phoenix Contact 3011067 Installation protective conductor terminal block VIOK 1,5-D/TG/D/PE
Normally In Stock
Code: 1762
VIOK 1,5-D/TG/D/PE Phoenix Contact 3011067 Phoenix Contact VIOK 1, 5-D/TG/D/PE, Sensor/actuator Terminal Block, Cross section: 0.2 mm - 4 mm, AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: gray (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$23.71
Sale Price
$19.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3011067 The protective conductor terminal block has specific parameters, including a nominal voltage of 250V and a maximum current capacity of 24A, which is determined by the plug used. The connection method is screw-based for all levels, with rated cross-sections ranging from 2.5mm² to 4mm², while smaller connections use a 1.5mm² rating. These terminals are mounted using two different types: NS 35/7.5 and NS 35/15, and come in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
4
Terminal Block Number of Connections
7
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Installation Ground Terminal Block
Features

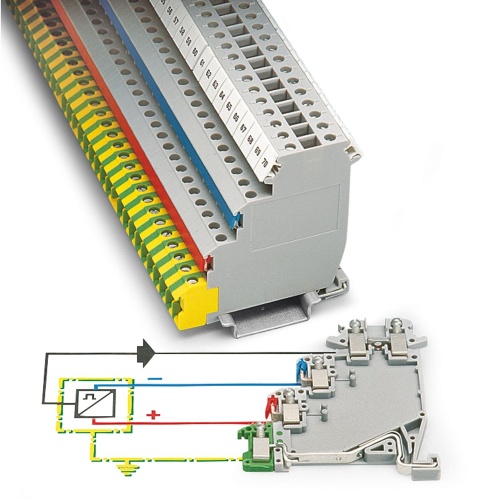

The two middle terminal points supply potential to the initiator

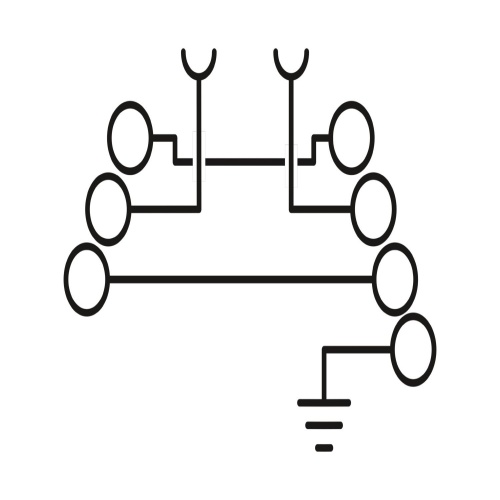

This terminal block is a combination of a DIK ... and DOK ... terminal block where a single terminal block can be used for initiators and actuators
The PE connection is located in the lower level
The upper level contains the feed-through connections for the signal cable which can be labeled
