Code: 173863

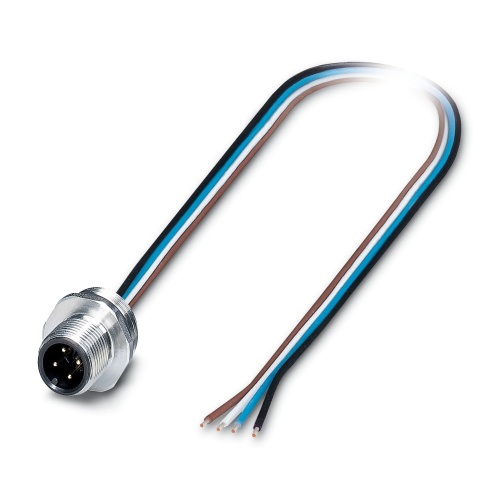

Phoenix Contact 1554555 Device connector front mounting SACC-E-M12MS-4CON-PG 9/0,5 VA
Normally In Stock
Phoenix Contact 1554555 - 4 Positions - Cu Alloy - IP65, IP67, IP69, IP69K - Individual Wire Connection - M23
Condition: New
Usually ships Same Day or Next Day$39.65
Sale Price
$33.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1554555 A universal device connector is mounted to the front with a 4-position pin configuration, utilizing an M12-Standard coding system where A represents the position on the free cable end, and features individual wires with a 0.5m length, consisting of TPE litz wire with a 0.34mm2 cross-sectional area that is potted.
Specifications
Connector Material
Cu Alloy
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
