Code: 173690
Phoenix Contact 1458842 Device connector front mounting SACC-E-M12FS-8CON-M16/0,5 VA
Normally In Stock
Phoenix Contact 1458842 - 8 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection - M23
Condition: New
Usually ships Same Day or Next Day$50.99
Sale Price
$42.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

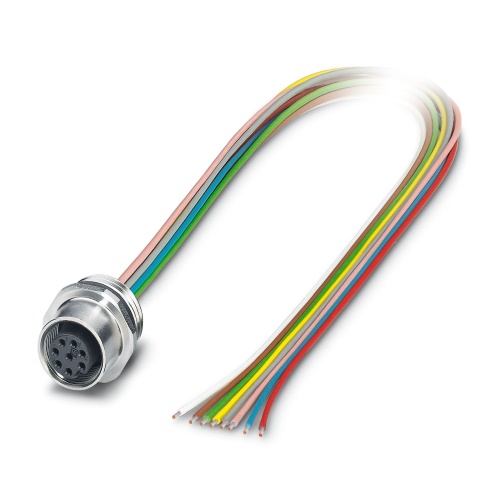

Phoenix Contact 1458842 A device connector suitable for front mounting has an 8-position socket with a straight M12-Standard coding on the free end of the cable, allowing universal compatibility, featuring individual wires with a total cross-sectional area of 0.25 mm2, and is potted in TPE litz wire, available in a length of 0.5 meters, mounted using an M16 x 1.5 thread.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
8
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
