Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 173660

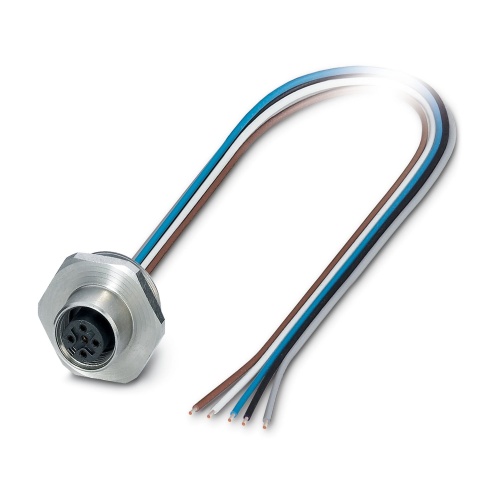

Phoenix Contact 1408416 Device connector front mounting SACC-E-M12FS-4CON-M20/0,5 VA
Normally In Stock
Phoenix Contact 1408416 - 4 Positions - CuZn - IP65, IP67, IP69, IP69K - Individual Wire Connection - M23
Condition: New
Usually ships Same Day or Next Day$40.61
Sale Price
$33.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1408416 A device connector with a universal design is mounted at the front of an assembly using four separate positions on the socket and features a straight M12-Standard coding where two wires are connected via an A-coded cable end. The mounting style uses an M20 x 1.5 thread and has individual wires within a 0.5m long, 0.34mm2 cross-sectional area TPE litz wire that is potted.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
Code: 173660
Phoenix Contact 1408416 Device connector front mounting SACC-E-M12FS-4CON-M20/0,5 VA
$40.61
Sale Price
$33.84
