Code: 1685

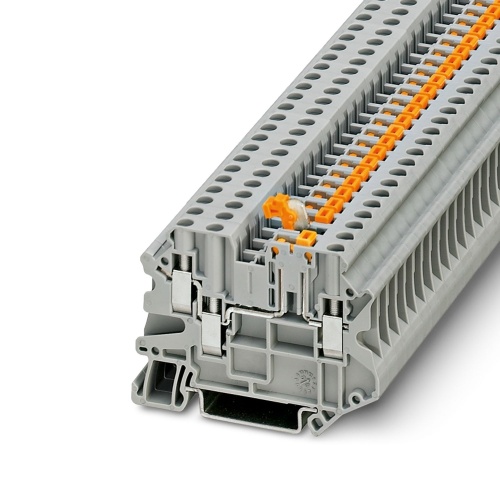

Phoenix Contact 3064014 Knife-disconnect terminal block UT 4-TWIN-MT P/P
Normally In Stock
UT 4-TWIN-MT P/P Phoenix Contact 3064014 Phoenix Contact UT 4-TWIN-MT P/P. Terminal Block 6.2mm (3 Conductor) Gray Knife Disconnect (With test socket screws) Feed through screw connection, up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.79
Sale Price
$5.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3064014 A knife-disconnect terminal block with test sockets for inserting test plugs is available with a nominal voltage of 500 V and a maximum current capacity of 20 A. It features three connection points secured by screw connections, allowing rated cross sections ranging from 0.14 mm² to 6 mm². The mounting type is NS 35/7,5 or NS 35/15, and the terminal block has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Model Type
UT
Features
Double bridge shaft enables individual potential distribution and supply
Compact design and high current carrying capacity of 20 A
Downloads
Phoenix 3064014 CAD data International.dxfPhoenix 3064014 CAD data International.pdfPhoenix 3064014 CAD data International.stpPhoenix 3064014 CAD Drawing.zipPhoenix 3064014 Manufacturers declaration English.pdfPhoenix 3064014 Manufacturers declaration International-2.pdfPhoenix 3064014 Manufacturers declaration International.pdfPhoenix 3064014 Safety note English.pdfPhoenix 3064014 Spec Sheet.pdfPhoenix 3064014 Tender Text English.zip
