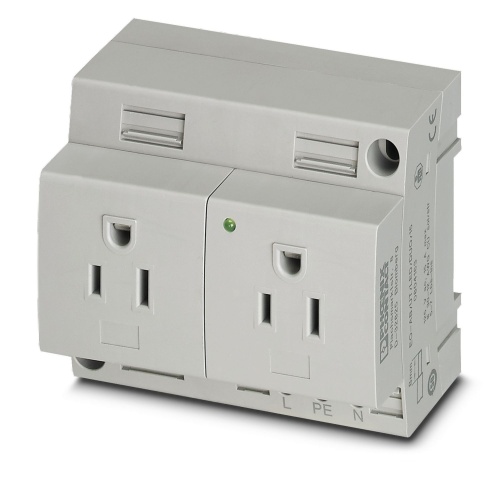

Phoenix Contact 0804163 Double socket EO-AB/UT/LED/DUO/15
Normally In Stock
Code: 155179
Phoenix Contact 0804163 EO-AB/UT/LED/DUO/15 gray ,CuZn37,PA Double socket (MUST BUY IN PACKS OF 2)
Condition: New
Usually ships Same Day or Next Day$33.36
Sale Price
$27.80
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

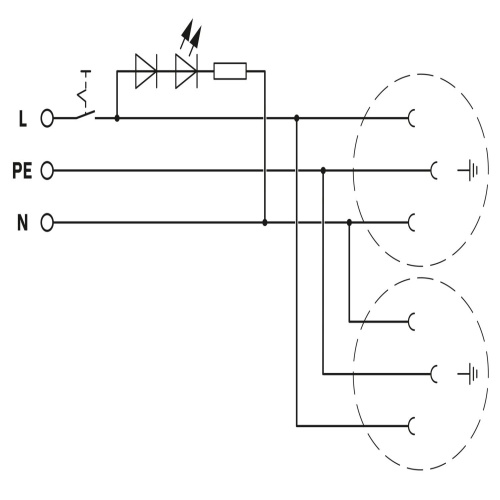

Phoenix Contact 0804163 The socket features a double connection point with a light indicator and follows the AB 15A pin connector pattern type, secured by a screw connection in a gray color. It operates at 125 V AC (60 Hz) with a nominal current of 15 A and is compatible with DIN rail or direct mounting, adhering to standards such as UL 508 and IEC 60884-1, marking for countries include USA and Canada.
Specifications
Outlet Color
Gray
Outlet Mounting
Din Rail
Outlet Amperage Rating
15 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
2 Receptacles
Outlet Voltage Rating
125 Volt
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
