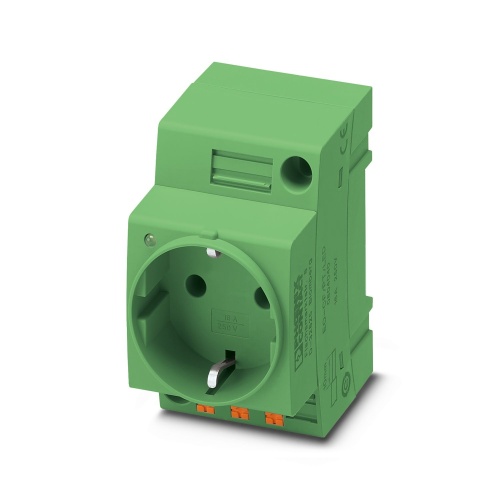

Phoenix Contact 0804041 Socket EO-CF/PT/LED/GN
Normally In Stock
Code: 155154
Phoenix Contact 0804041 EO-CF/PT/LED/GN green ,CuZn37,PA Socket (MUST BUY IN PACKS OF 5)
Condition: New
Usually ships Same Day or Next Day$9.31
Sale Price
$7.76
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

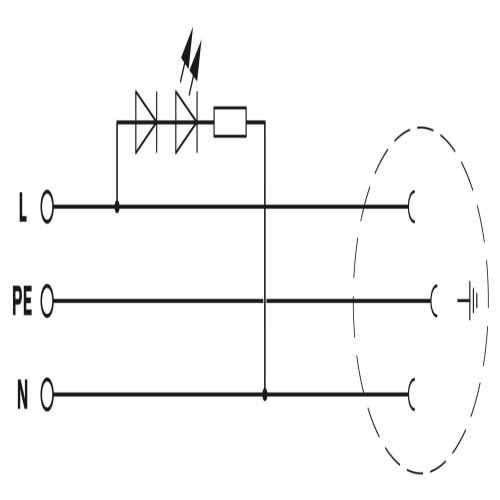

Phoenix Contact 0804041 A socket with a light indicator features a CF pin connector pattern and employs a push-in spring connection mechanism, identified by its green color, rated for 250V AC at 50Hz, with a maximum current draw of 16A. It can be mounted on either DIN rail in the service interface or directly to a surface, adhering to standards such as VDE 0620-1 and IEC 60884-1, while also bearing country marking for Germany.
Specifications
Outlet Mounting
Din Rail
Outlet Voltage Rating
250 Volt
Outlet Color
Green
Outlet Amperage Rating
16 Amp
Manufacturer
Phoenix Contact
Outlet Number of Receptacles
1 Receptacle
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot

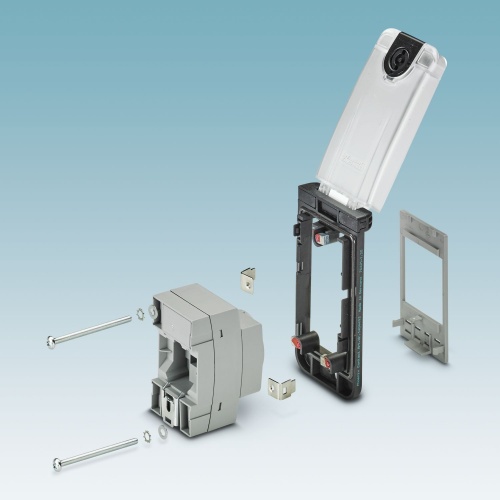

Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
