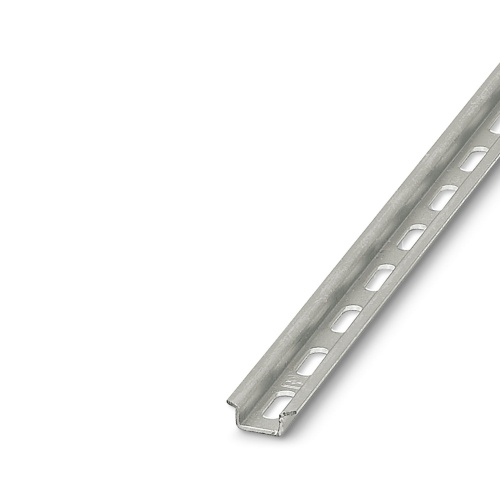

Phoenix Contact 1207646 DIN rail perforated NS 15 PERF 1000MM
Normally In Stock
Code: 155061
Phoenix Contact 1207646 NS 15 PERF 1000MM DIN rail perforated
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$15.17
Sale Price
$12.64
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

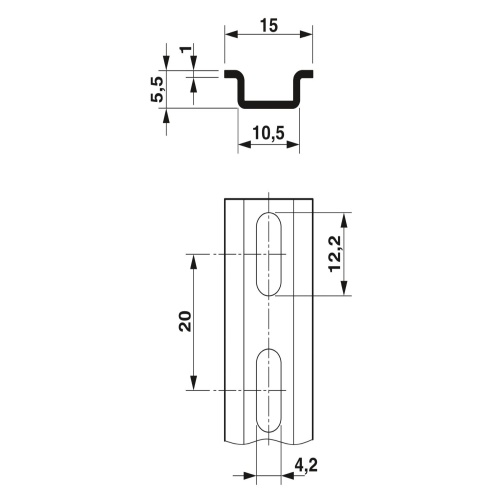

Phoenix Contact 1207646 A DIN rail with a perforation pattern according to EN 60715 has a specified length of 1000 mm and is made from steel that has been galvanized and passivated with a thick layer. The mounting type is standard profile, silver-colored, and the current dimensional tolerances include a tolerance of ±0.5 mm for the profile, initial dimension, hole pattern, and hole position, with a minimum unperforated length of 20 mm or perforated length of 100 mm.
Specifications
Din Rail Length
1000 mm
Manufacturer
Phoenix Contact
Component
Perforated Din Rail
Features
Space-saving and convenient installation of DIN rails
Easy clamping strip fixation due to various end bracket variants
Good neutral connection with neutral busbars and various support brackets
Simple cable bundling and fixing with various cable tie variants
