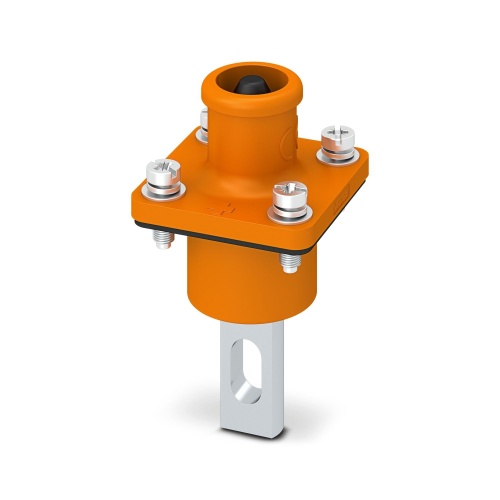

Phoenix Contact 1130816 Connector ES-FT-BPC-B 16-25 OG
Normally In Stock
Code: 154930
Phoenix Contact 1130816 - Connector - 1 Position - 4 AWG - 120 Amp - IP65 - Screw Connection
Condition: New
Usually ships Same Day or Next Day$16.56
Sale Price
$13.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1130816 The connector in question has an orange color and is used for a range of applications including BPC, featuring one position for connection. It is rated to handle 1500 volts and a maximum current of 120 amps, secured through a screw connection with a pin-based contact method.
Specifications
Connector Material
Polyamide
Connector protection
IP65
Manufacturer
Phoenix Contact
Connector Amperage
120 Amp
Number of Positions
1
Component
Energy Storage Connector
Features
Mismatching and short circuit proof
Touch-proof
Foolproof mechanism installed
Safety lock
360° free rotation and flexible wiring
Patented design, with 3 proofs and one rotation
