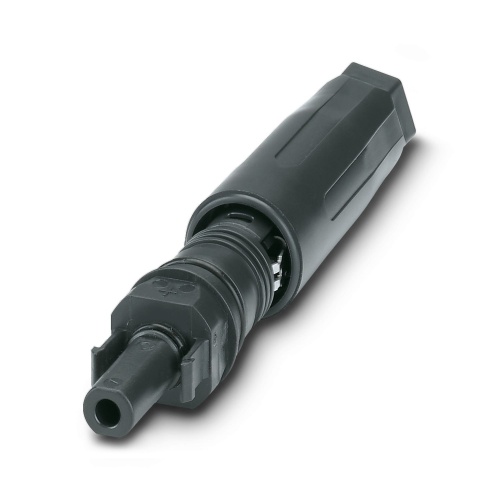

Phoenix Contact 1020776 Connector PV-C4F-S 2,5-6 (+)
Normally In Stock
Code: 154872
Phoenix Contact 1020776 - Connector - SUNCLIX - 1 Position - Cu - Black - 35 Amp - 1500 V - IP20 - Spring-Cage Connection
Condition: New
Usually ships Same Day or Next Day $7.25
Sale Price
$6.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1020776 The connector has a SUNCLIX range in black color and is designed for one position, with a minimum conductor cross section of 2.5 mm² and a maximum of 6 mm², rated at 1500 V DC and capable of handling 35 A of current. The connection method is spring-cage, using a socket type contact, and can accommodate cables with diameters between 5 mm and 8 mm.
Specifications
Connector Color
Black
Connector Amperage
35 Amp
Connector Material
PPE
Connector Material
Cu
Connector protection
IP20
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
1
Sub Component
Photovoltaic Connector
Connector Voltage
1500 Volt
Features
Convenient, secure spring connection technology
High yield, thanks to silver-plated contacts
Convenient release without a special tool
One-piece DC connector
