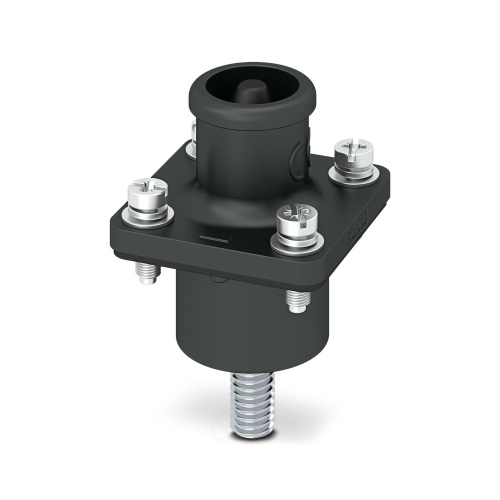

Phoenix Contact 1106304 Connector ES-FT-BPC-S 16-25 BK
Normally In Stock
Code: 154871
Phoenix Contact 1106304 - Connector - 1 Position - 4 AWG - 120 Amp - IP65 - Screw Connection
Condition: New
Usually ships Same Day or Next Day$16.56
Sale Price
$13.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1106304 A connector with a black color and one position is specified for BPC applications, featuring a minimum conductor cross-section of 16mm² and a maximum of 25mm². It has a rated voltage of 1500V and can handle a maximum current of 120A, secured through screw connections with pin-style contacts.
Specifications
Connector Material
Polyamide
Connector protection
IP65
Manufacturer
Phoenix Contact
Connector Amperage
120 Amp
Number of Positions
1
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Mismatching and short circuit proof
Touch-proof
Foolproof mechanism installed
360° free rotation and flexible wiring
Safety lock
