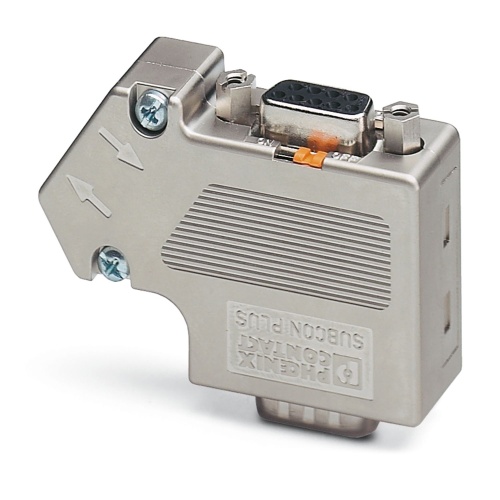

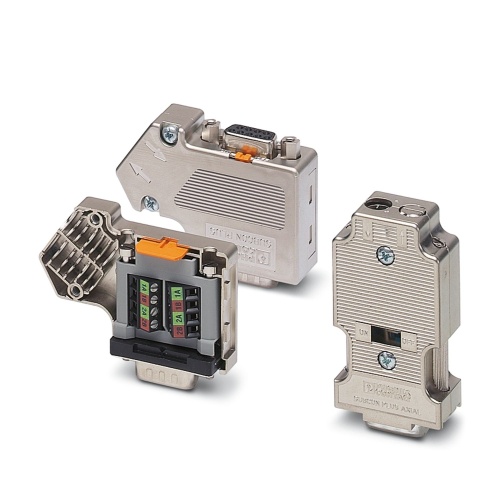

Phoenix Contact 2708245 D-SUB bus connector SUBCON-PLUS-PROFIB/PG/SC2
Normally In Stock
Code: 152701
Phoenix Contact 2708245 - IP40 - D-SUB Connection
Condition: New
Usually ships Same Day or Next Day $77.63
Sale Price
$64.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2708245 A D-SUB connector with a 9-pin configuration, cable outlet at a 35° angle, and a bus system utilizing PROFIBUS DP technology that reaches speeds of up to 12 Mbps is provided. This setup also includes a PG D-SUB socket for connecting a programming device, allowing users to control the termination resistor via a slide switch. Additionally, three specified pins (3, 5, 6, and 8) have screw connection terminal blocks for securing connections.
Specifications
Connector protection
IP40
Manufacturer
Phoenix Contact
Component
D-SUB
Sub Component
Bus Connector
Features
Termination resistor can be connected
Screw connection
35° cable outlet

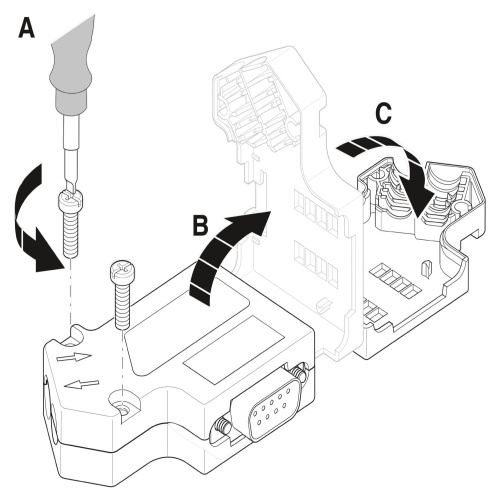

Change to the D-SUB orientation through a reversible connection block
Metal housing for high level of immunity to interference at maximum transmission speed
Vibration and shock resistance in accordance with EN 50155
Suitable for all common Fast Connect PROFIBUS cables and RS-485 bus lines
