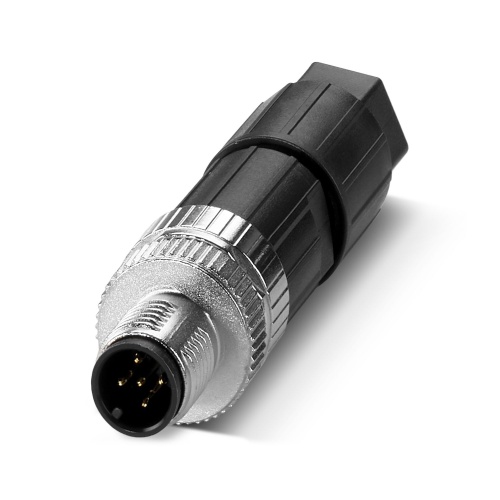

Phoenix Contact 1424649 Connector SACC-M12MS-5PL M
Normally In Stock
Code: 150151
Phoenix Contact 1424649 - Connector - 5 Positions - CuSn - 26 AWG - 20 Amp - IP65 - Push-Lock Connection - M12
Condition: New
Usually ships Same Day or Next Day$16.56
Sale Price
$13.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

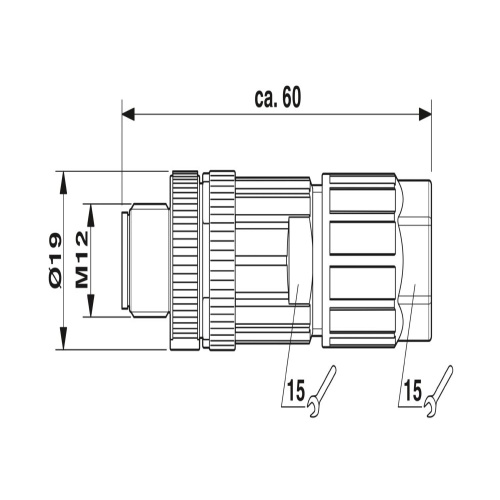

Phoenix Contact 1424649 This connector is a type of universal connector with a specific configuration, consisting of a M12 plug and a push-lock spring connection mechanism. The connector has an unshielded design and features knurling on the material, which is made from zinc die-cast and nickel-plated, allowing for secure attachment to cables with external diameters ranging from 4 mm to 8 mm.
Specifications
Connector Amperage
20 Amp
Connector Material
Cusn
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Connector - Cable Side
Features

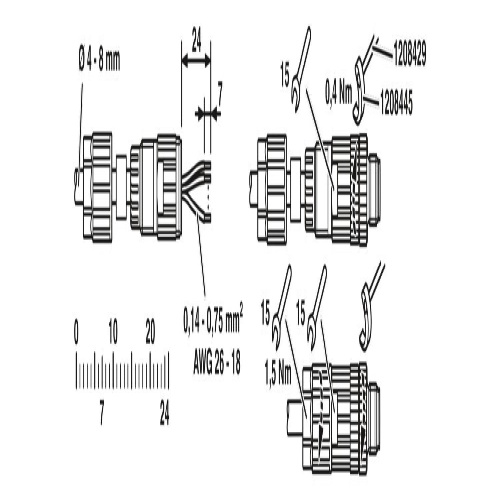

Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
