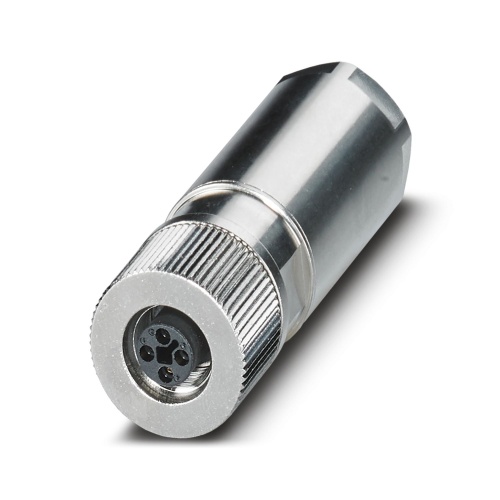

Phoenix Contact 1151366 Power connector SACC-M12FST-4PL-CM
Normally In Stock
Code: 149680
Phoenix Contact 1151366 - Power connector - 4 Positions - 16 AWG - IP65 - Push-Lock Connection
Condition: New
Usually ships Same Day or Next Day$59.20
Sale Price
$49.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1151366 The power connector features a socket with a straight M12 thread and is designed for use in applications requiring a secure, push-lock connection. It has a coding of T and a brass body that has been nickel-plated, providing added durability and resistance to corrosion. The connector's cable entry points are made from knurled material and have an external diameter ranging from 6 mm to 11 mm.
Specifications
Connector Material
Nickel-Plated Brass
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Power Connector-Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Protected seal in the M12 socket
