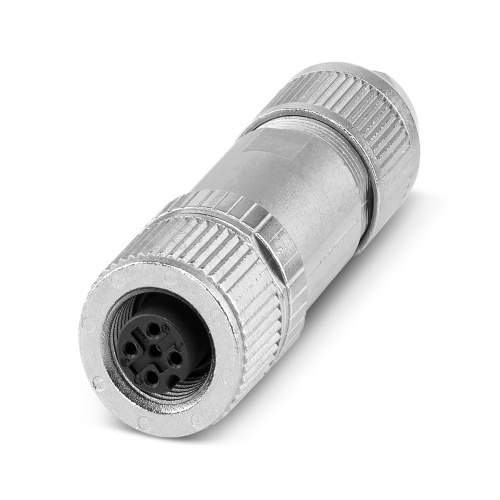

Phoenix Contact 1424660 Connector SACC-M12FS-5PL SH
Normally In Stock
Code: 149674
Phoenix Contact 1424660 - Connector - 5 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection
Condition: New
Usually ships Same Day or Next Day$30.23
Sale Price
$25.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

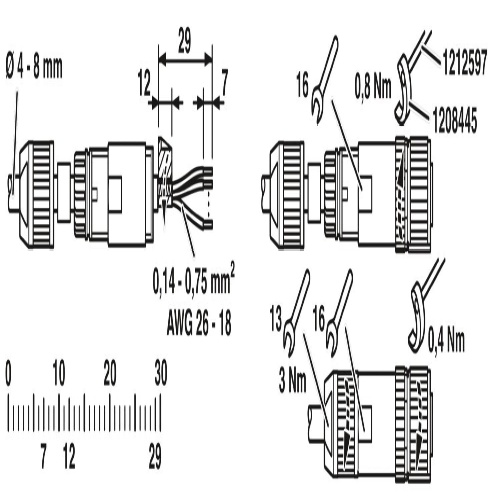

Phoenix Contact 1424660 The connector is a universal type with a straight socket that accepts an M12 cable and has a push-lock spring connection mechanism. It features a zinc die-cast and nickel-plated knurled material design for added durability, and its external cable diameter ranges from 4 to 8 millimeters.
Specifications
Connector Material
Cusn
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Connector - Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
