Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 149012
Phoenix Contact 1424684 Connector SACC-M12MRD-4PL SH PN
Normally In Stock
Phoenix Contact 1424684 - 4 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection - M12
Condition: New
CALL FOR LEAD TIME$32.71
Sale Price
$27.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

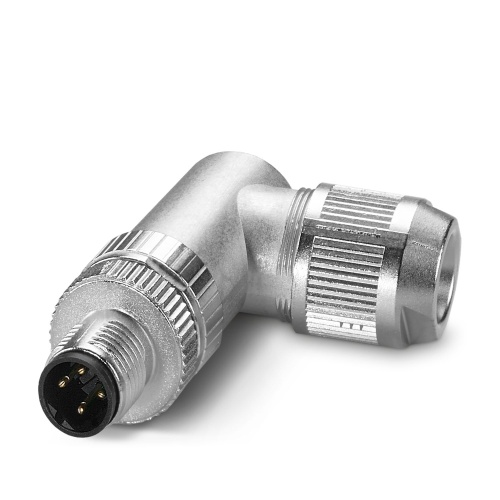

Phoenix Contact 1424684 The specified connector features a PROFINET CAT5 interface at 100 Mbps speeds and is designed with a 4-position shielded configuration. It has an angled M12 plug and employs a push-lock spring connection for secure attachment. The housing material is zinc die-cast, which is then nickel-plated, while the external cable diameter ranges from 4 to 8 mm.
Specifications
Connector Material
PA 6.6
Connector Material
Cusn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
4
Component
Data Connector (Cable Side)
Features

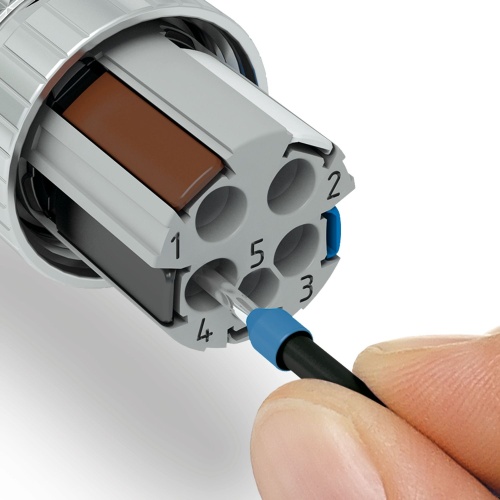

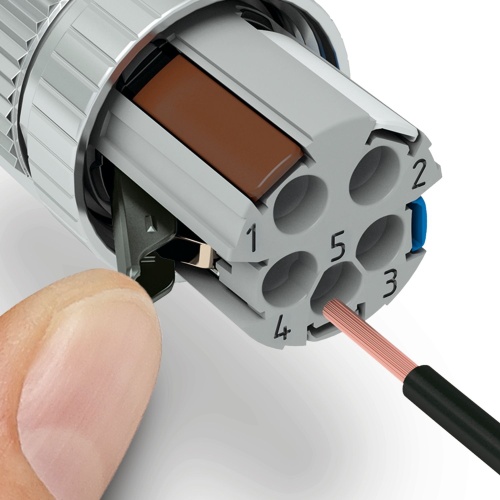

Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
Flexible cable outlets with angled connectors
