Phoenix Contact 0800392 Shrink sleeve WMS 2,4 (60X4)RXL
Normally In Stock
Code: 1325
Phoenix Contact WMS 2, 4 (60X4)RXL White Marker for THERMOARK Roll Printer, No perforations/1 label per sleeve, 10, 000 labels on 2, 500 sleeves, white, labeling field: 60 x 4 mm, accepts up to 2.4 mm diameter conductor. 18-24 gauge MTW (16-24 THHN)
Condition: New
Usually ships Same Day or Next Day$1504.19
Sale Price
$1253.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800392 A shrink sleeve for labeling is available in various options including THERMOMARK E.300 and ROLLMASTER series, which can be used with a range of cable diameters from 0.8 to 2.4 mm. The sleeves are unperforated and feature a slide-on mounting type. Individual labels are numbered at 2500 and include text fields measuring 4mm in height and 60mm in width, suitable for various labeling needs.
Specifications
Label Color
White
Label Preforations
No Preforations
Marking Color
White
Marking Printing System

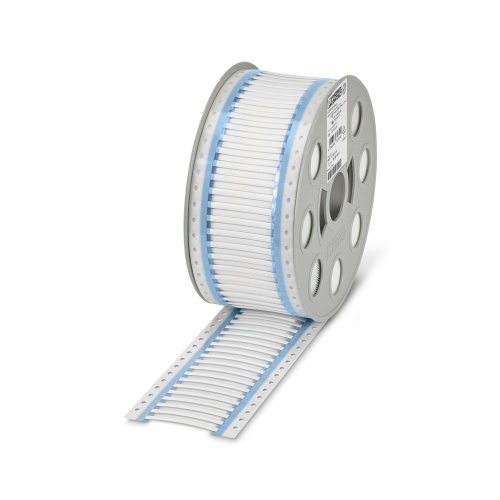

THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
4 mm
Manufacturer
Phoenix Contact
MTW Wire Gauge
18-24 Gauge MTW Wire
THHN Wire Gauge
16-24 Gauge THHN Wire
Marking Lettering Field Size
60 mm X 4 mm
Component
Wire Heatshrink Label
Features

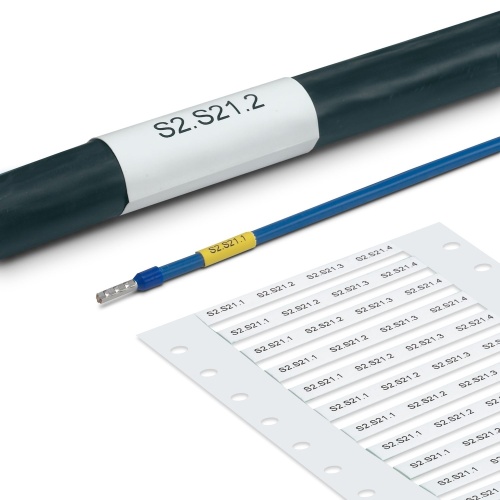

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1

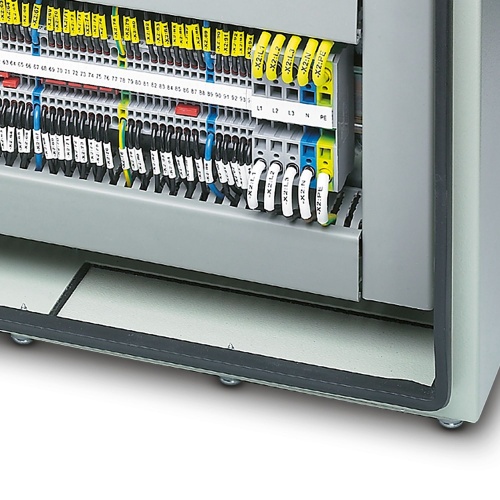

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
