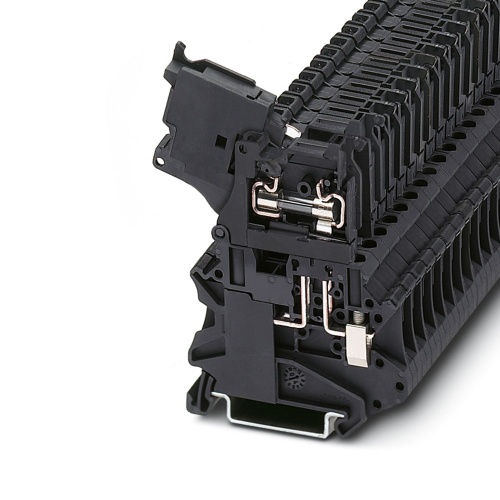

Phoenix Contact 3046032 Fuse modular terminal block UT 4-HESI (5X20)
Normally In Stock
Code: 1213
UT 4-HESI (5X20) Phoenix Contact 3046032 Phoenix Contact UT 4-HESI (5x20). Fuse Block 6.2mm Black with screw connection for 5mm x 20mm glass fuse insert without indicator, up to 500V, 6.3A, screw connection, 26-10 AWG.
Condition: New
Usually Ships Same day or Next Day$6.47
Sale Price
$5.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046032 The fuse terminal block is a modular unit with two types of fuses: one made of glass or ceramics and the other with a specific symbol G, both rated for 500V, 6.3A nominal current, connected via screw terminals, with cross-sections ranging from 0.14-6mm², and mounted using the NS35/7.5 and NS35/15 types, with a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046032 CAD data International.dxfPhoenix 3046032 CAD data International.pdfPhoenix 3046032 CAD data International.stpPhoenix 3046032 CAD Drawing.zipPhoenix 3046032 Manufacturers declaration English.pdfPhoenix 3046032 Manufacturers declaration International.pdfPhoenix 3046032 Product Information English.pdfPhoenix 3046032 Safety note English.pdfPhoenix 3046032 Spec Sheet.pdfPhoenix 3046032 Tender Text English.zip
